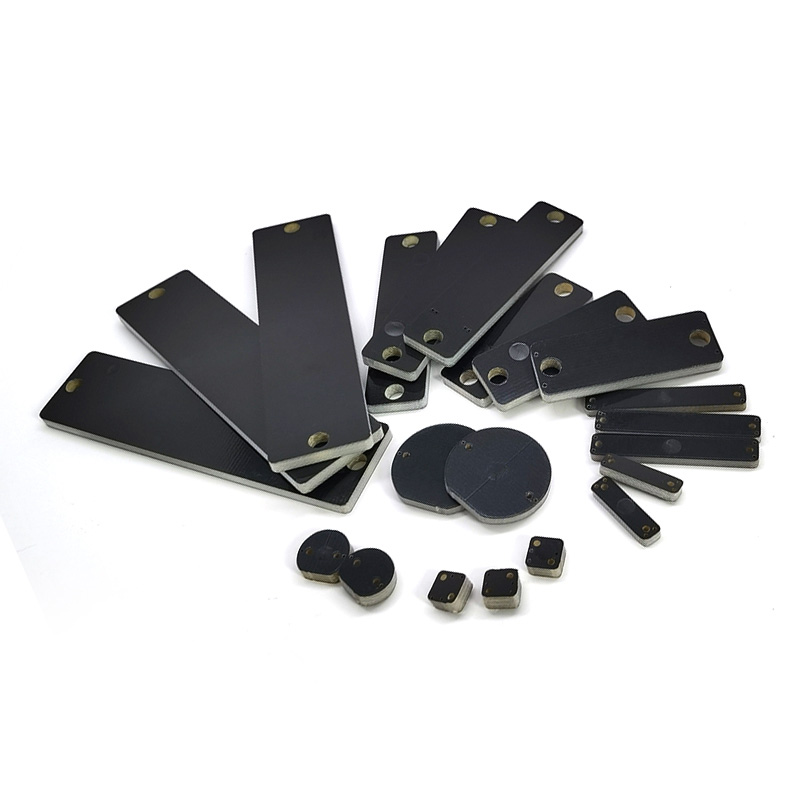

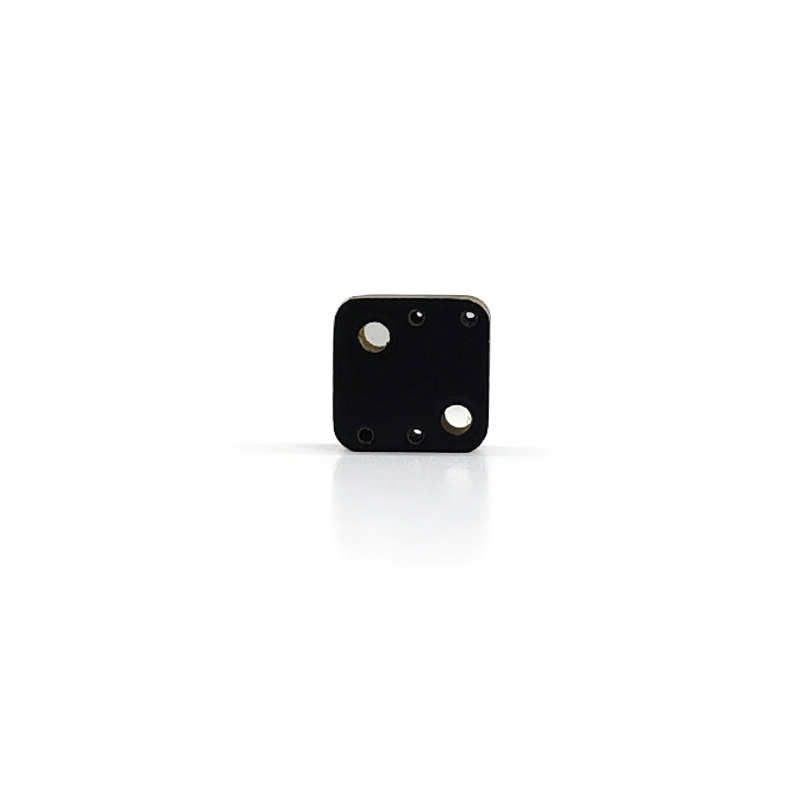

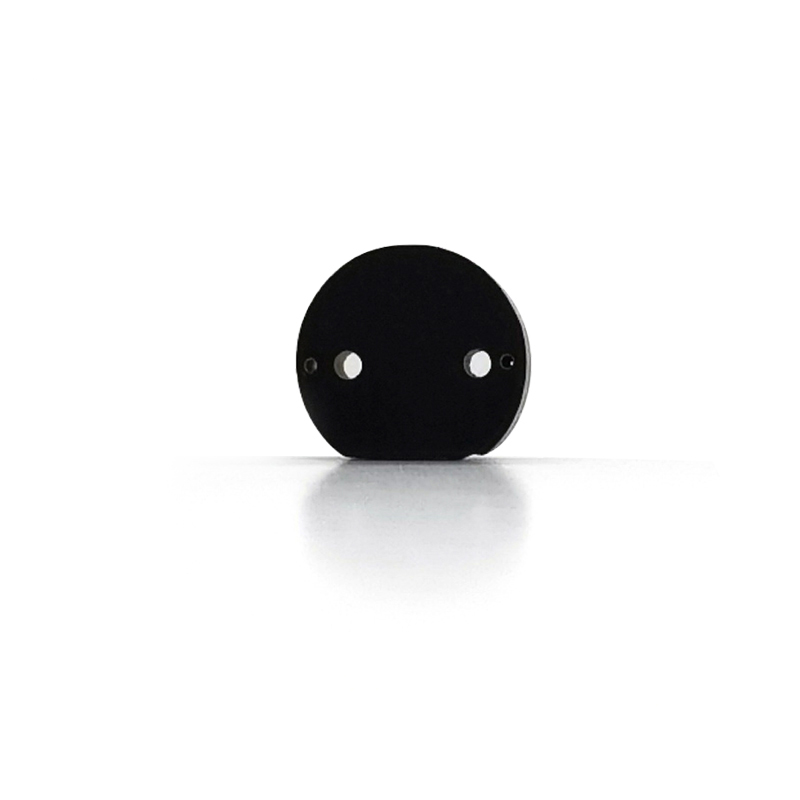

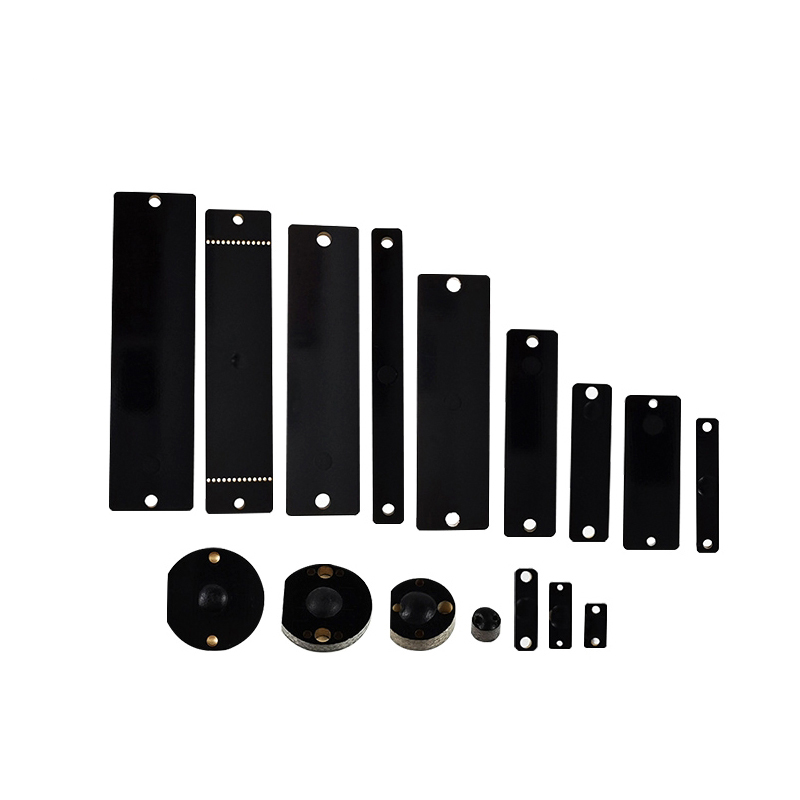

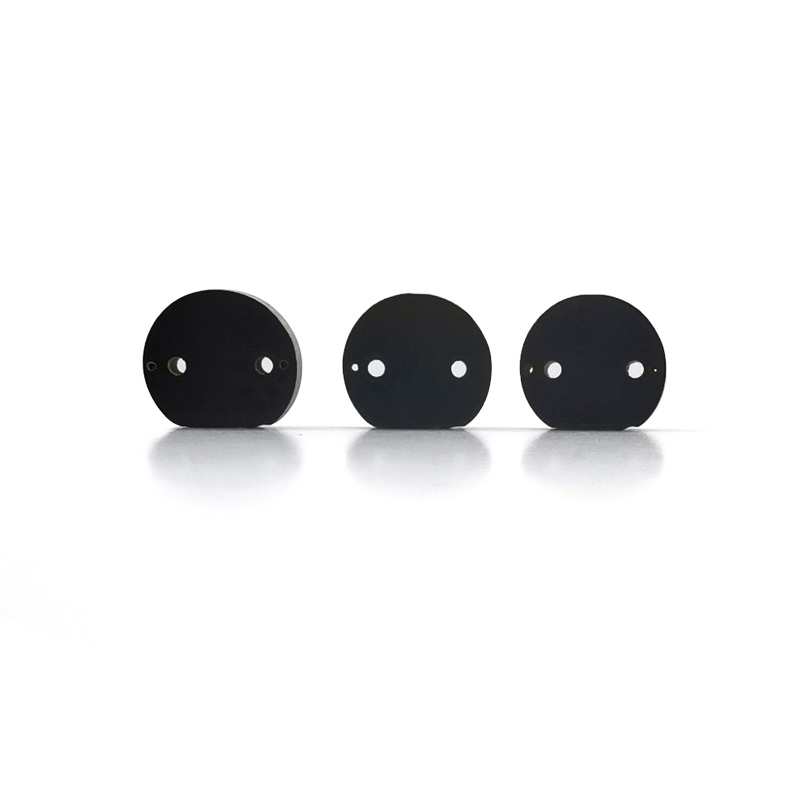

High Temperature Resistant RFID on Metal Tag
RFID On-Metal Tags are specially designed for use on metallic surfaces or in high-dielectric environments where standard RFID tags typically fail. By adopting optimized antenna structures and insulating layers, these tags ensure reliable performance and stable read/write capability on metal assets. They are widely used in asset tracking, equipment management, warehouse logistics, industrial manufacturing, and medical device management.
Inquiry- Feature
- Parameter
- Details
- Related Solutions

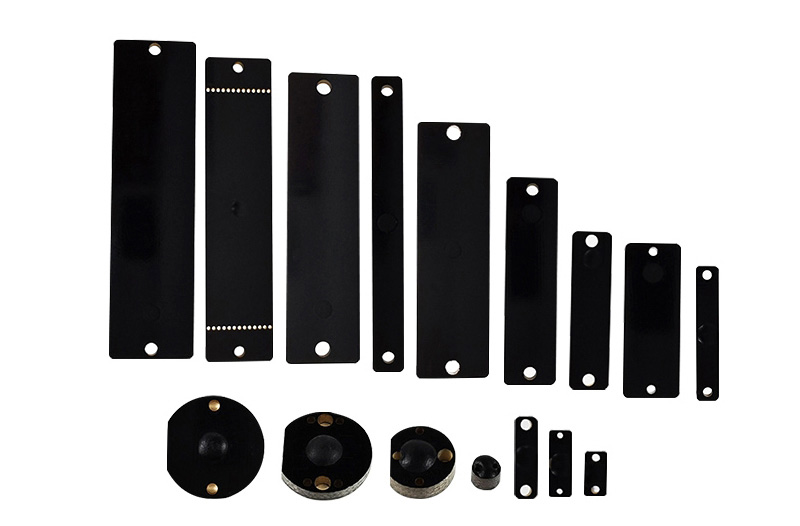

FEATURE
Metal-Surface Optimized – Specially designed structure ensures stable operation when mounted on metal or conductive surfaces.
Extended Read Range – Up to 3–10 meters with fixed readers (depending on model and environment).
Rugged & Durable – Industrial-grade encapsulation with waterproof, dustproof, and shock-resistant performance.
Flexible Installation – Options include 3M adhesive, screw mounting, rivets, or cable ties for various applications.
Data Security – Supports EPC, User Memory, and TID areas with password protection and anti-cloning features.
Long Lifecycle – More than 100,000 read/write cycles and data retention of over 10 years.
Global Standard Compliance – Compatible with EPC Global Class 1 Gen 2 and ISO/IEC 18000-6C protocols.
PARAMETER
| Category | Specification |
|---|---|
| Operating Frequency | 860–960 MHz (UHF, global) / 13.56 MHz (HF optional) |
| Protocol Standard | EPC Class 1 Gen 2 / ISO 18000-6C |
| Chip Options | Impinj Monza R6 / Alien Higgs-3 / NXP UCODE (optional) |
| Memory Capacity | EPC: 96–128 bits (up to 512 bits) User Memory: 512 bits – 2 Kbits |
| Read Range | 3–10 m (fixed reader) 1–3 m (handheld reader) |
| Mounting Methods | 3M adhesive, screws, rivets, cable ties |
| Housing Material | Industrial ABS / PC plastic + epoxy resin sealing |
| Operating Temperature | -40℃ to +85℃ |
| Storage Temperature | -55℃ to +125℃ |
| Protection Rating | IP65–IP68 (depending on model) |
| Shock Resistance | Withstands 1.5 m drop, high-pressure impact resistant |
| Data Retention | ≥ 10 years |
| Endurance | ≥ 100,000 read/write cycles |

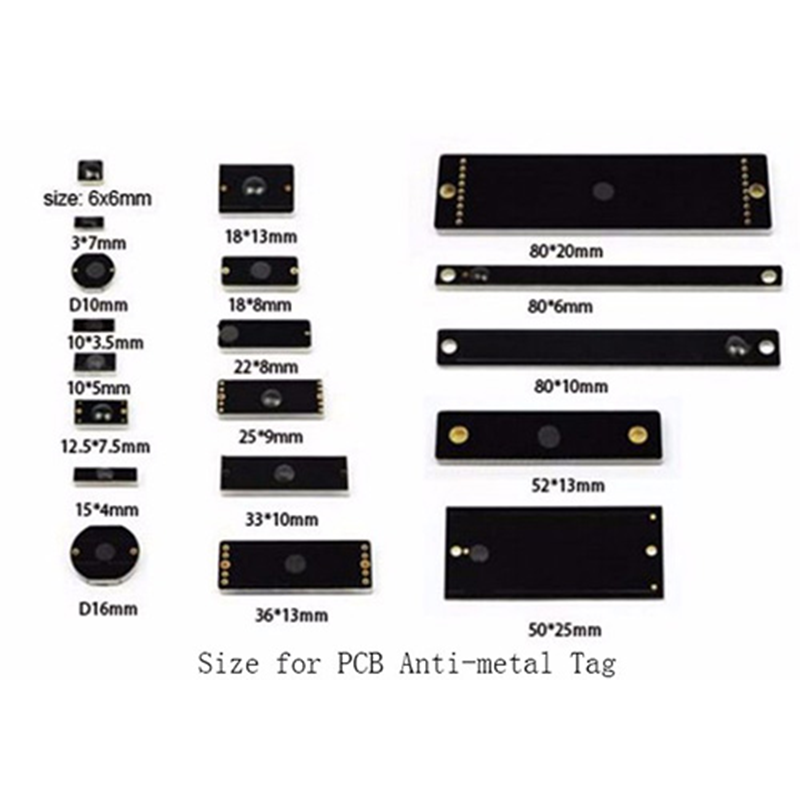

DETAILS
🎯 Anti-Metal Design
--Specially engineered with a ferrite/anti-metal layer
--Ensures reliable RFID performance on metallic objects
--Suitable for equipment, IT assets, tools, and industrial machinery
📶 Flexible RFID Options
--Frequency: LF / HF / UHF (EPC Class 1 Gen2, ISO18000-6C, ISO14443A, ISO15693)

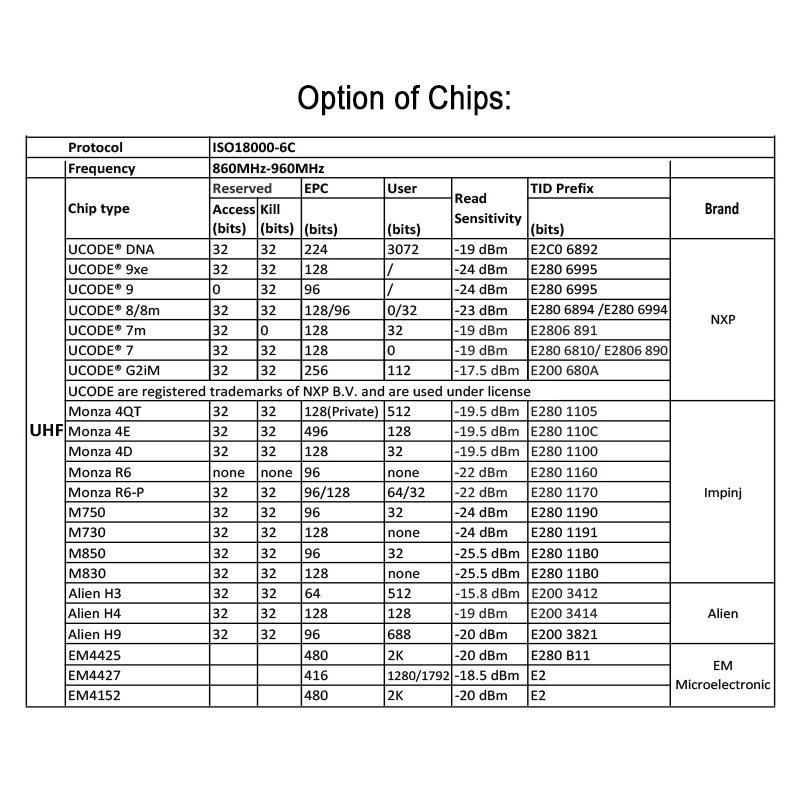

--Chip options include EM4200, NTAG213, ICODE SLIX, MIFARE Classic, Alien Higgs-4, Impinj Monza R6, NXP UCODE 8
--Read range: 2–10 meters (depending on chip, environment, and reader)
🔩 Durable & Customizable
--Materials: ABS, PET, PPS, or PCB with epoxy or hard casing
--Mounting options: adhesive, screws, rivets, or cable ties

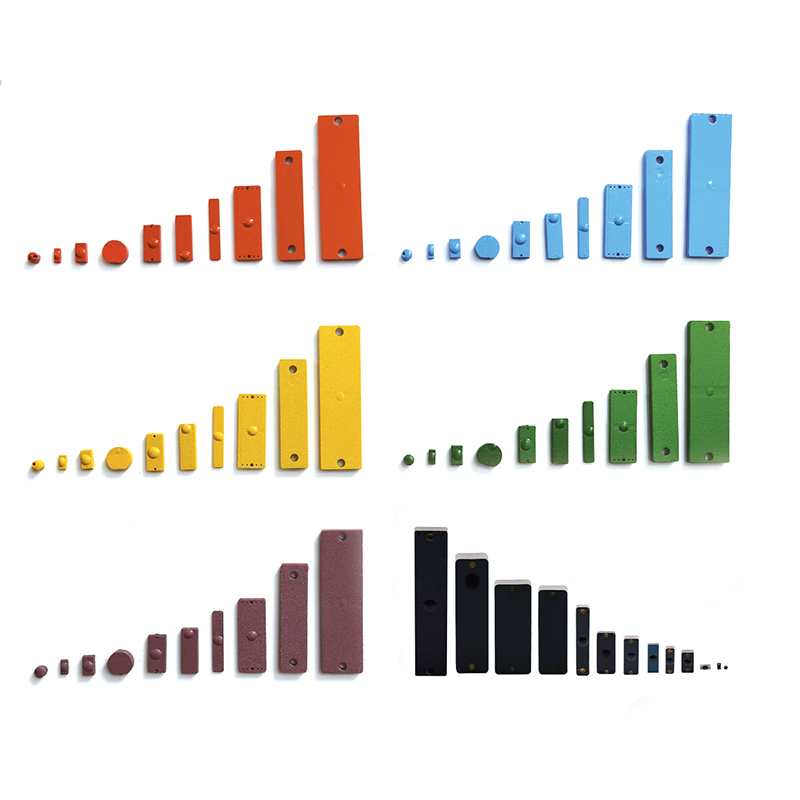

--Customizable size, shape, color, logo, serial numbers, or QR code
💡 Wide Application Scenarios
--IT asset management (servers, laptops, networking equipment)
--Tool & equipment tracking in factories or warehouses
--Logistics & supply chain management for metal containers and pallets
--Industrial automation and maintenance tracking
--Healthcare & laboratory equipment management
