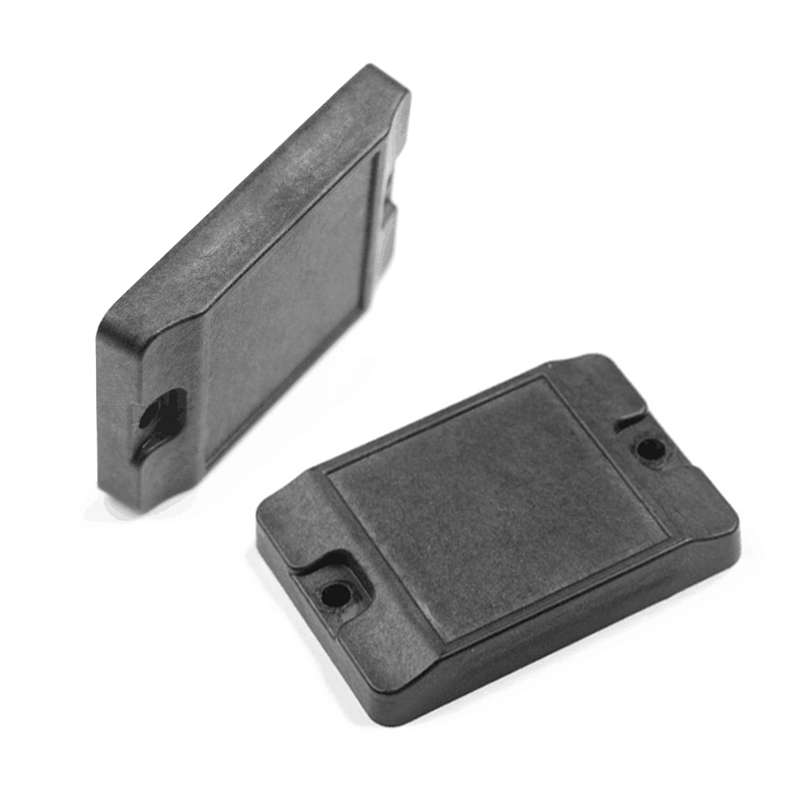

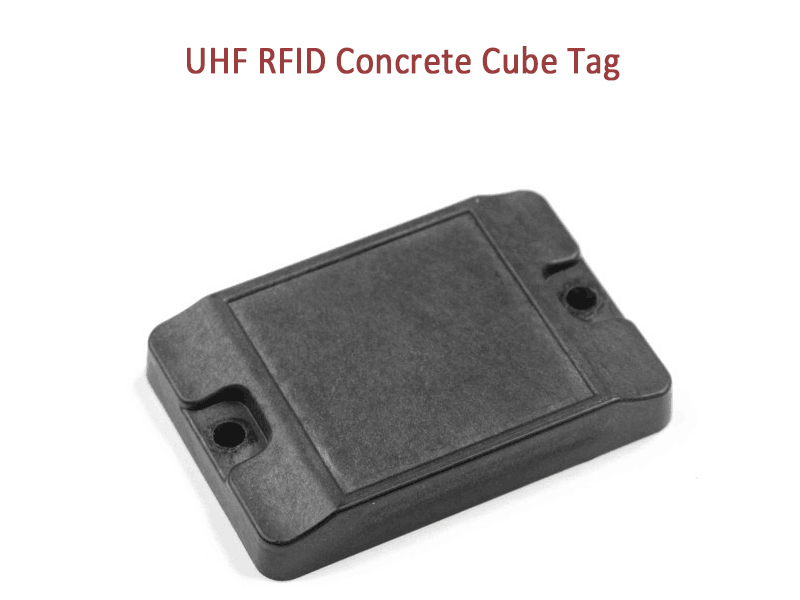

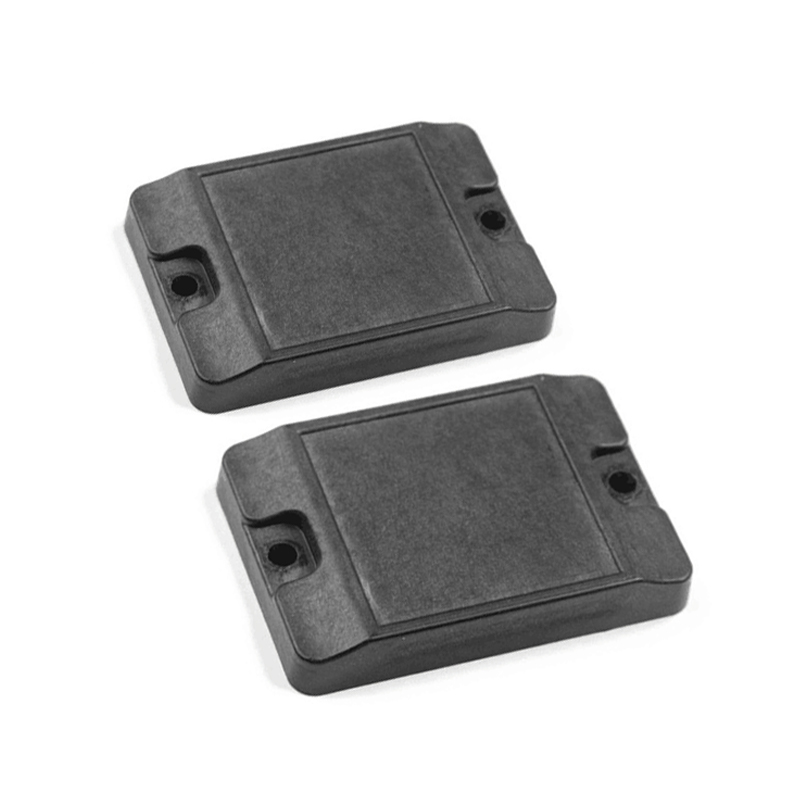

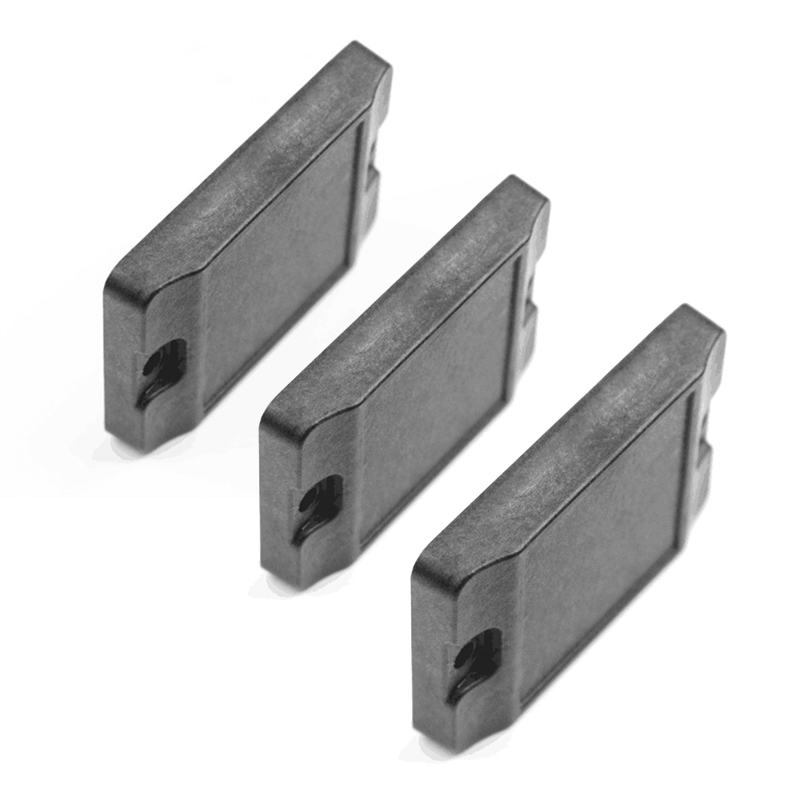

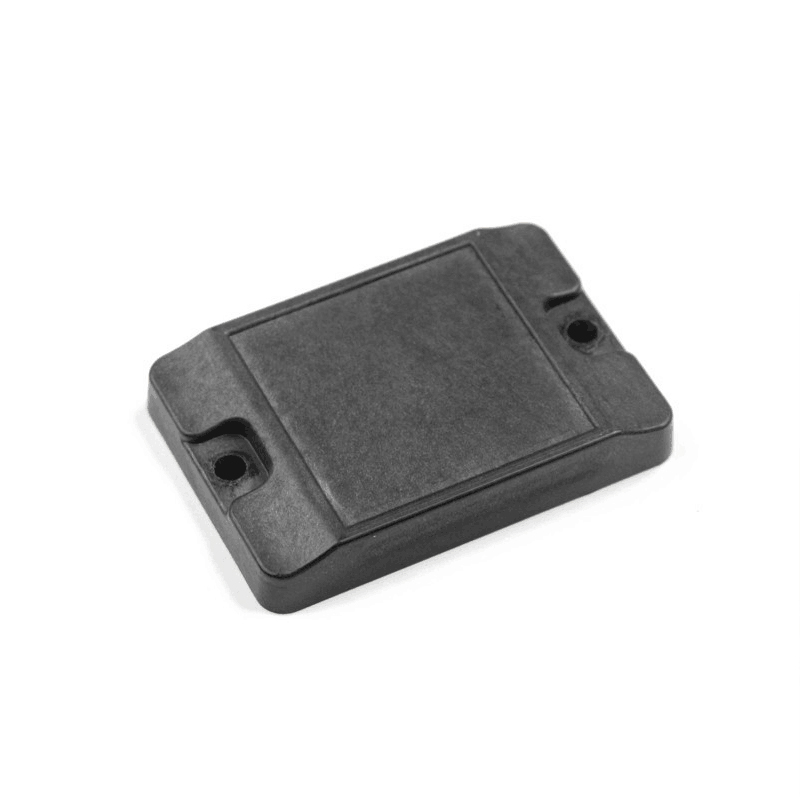

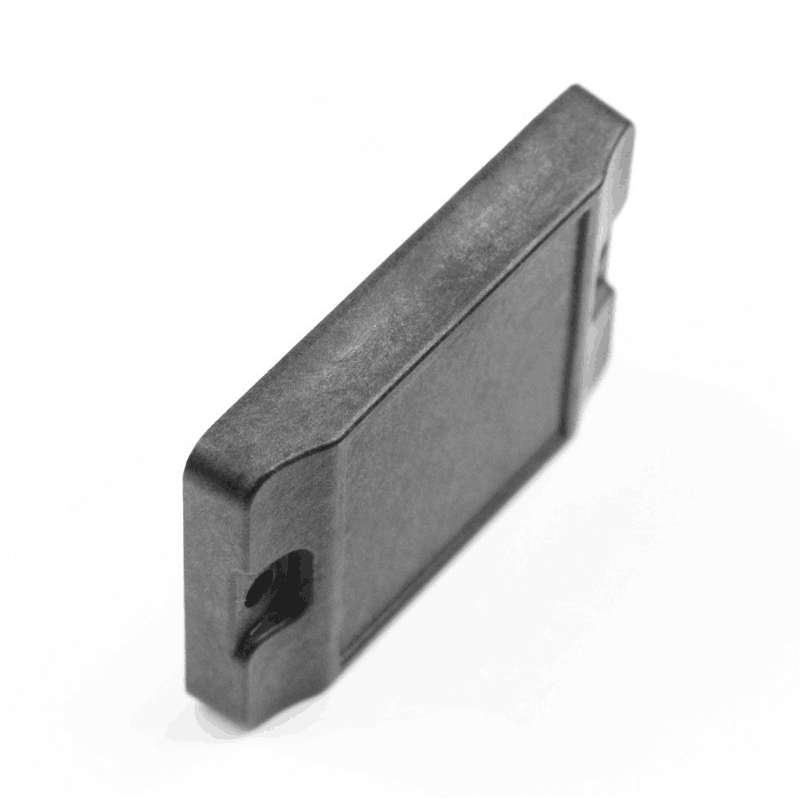

Printable Anti-metal RFID UHF Concrete Tag
UHF Concrete Tag is an ultra-high frequency (UHF) RFID tag designed for concrete environments. It uses compression-resistant, moisture-proof, and chemical-resistant packaging materials. It can be pre-buried or embedded in concrete structures for building component tracking, infrastructure management, construction progress monitoring, and asset life cycle management. It combines high-intensity physical protection with long-distance wireless identification capabilities, and is suitable for complex scenarios such as construction sites, bridges and tunnels, and underground pipelines.
Inquiry- Feature
- Parameter
- Details
- Related Solutions
FEATURE
Super durability: withstand concrete pouring impact, chemical corrosion and long-term underground humid environment.
Concealed management: pre-buried design does not affect structural strength, tag data is permanently bound to components.
Efficient operation and maintenance: handheld or drone-mounted readers and writers can quickly scan large areas.
Data traceability: from production, transportation to construction and maintenance, the entire life cycle is traceable.
PARAMETER
| PROPERTY | DETAIL |
|---|---|
| Communication | RFID |
| Brand Name | ZD |
| Frequency | 860~960MHz |
| Material | ABS |

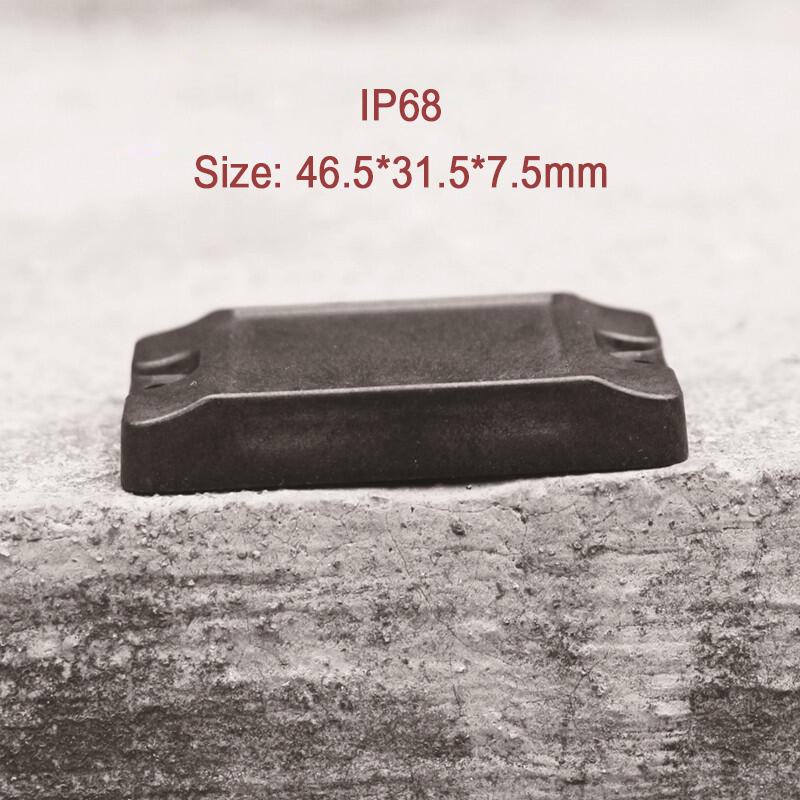

| Size | 46.5*31.5*7.5mm |
| Printing | Silkscreen printing, Laser printing etc. |

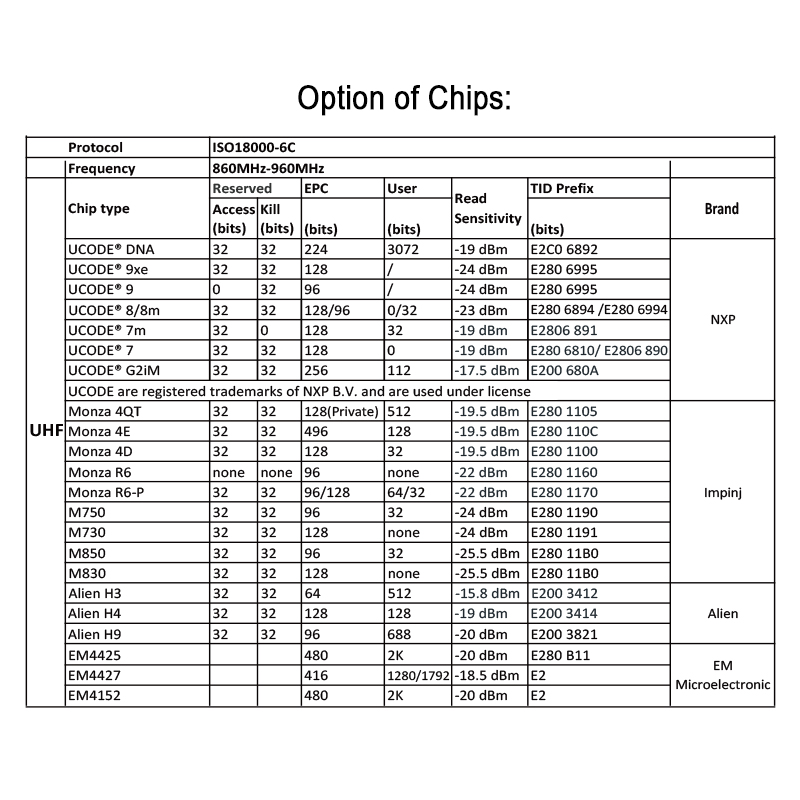

| Chip | 860MHz~960MHz: UCODE8/8m, UCODE9, Monza 4QT, Monza R6, Alien H9 etc. |
| Protocol | ISO11784/85, ISO18000-6C Class1 Gen2 |
| Read-write Times | > 100,000 Times |
| Application | Industry, Building |
DETAILS
🎯 Built for Harsh Environments

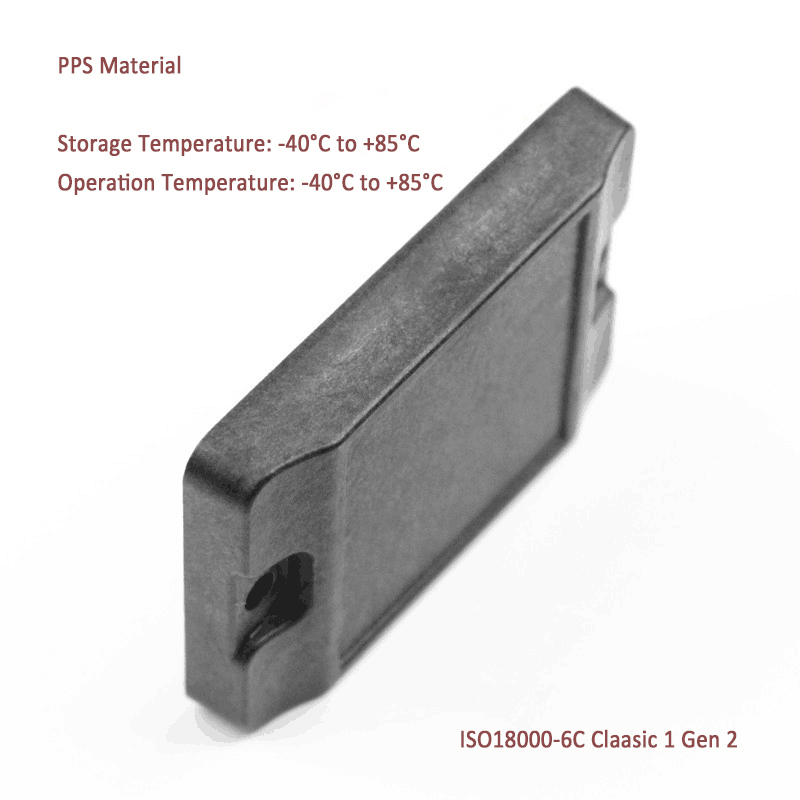

--Encased in durable ABS/PPS/epoxy housing for impact and abrasion resistance
--IP68-rated waterproof and dustproof protection
--Resistant to chemicals, cement alkalinity, and extreme temperatures
📶 Long-Range UHF RFID Performance
--Operates on 860–960 MHz UHF band
--EPC Global Class 1 Gen 2 / ISO 18000-6C compliant
--Read distance up to 3–8 meters (depending on reader & installation depth)
--Chip options include Alien H3, Monza R6, or other UHF ICs
🔩 Easy Integration into Concrete
--Designed to be embedded before concrete curing or during precast production
--Various shapes available: disc, block, or custom-molded designs
--Available with anti-metal structure for installation on rebar or metal mesh
💡 Wide Industrial Applications
--Precast concrete product tracking (pipes, beams, panels, manholes)

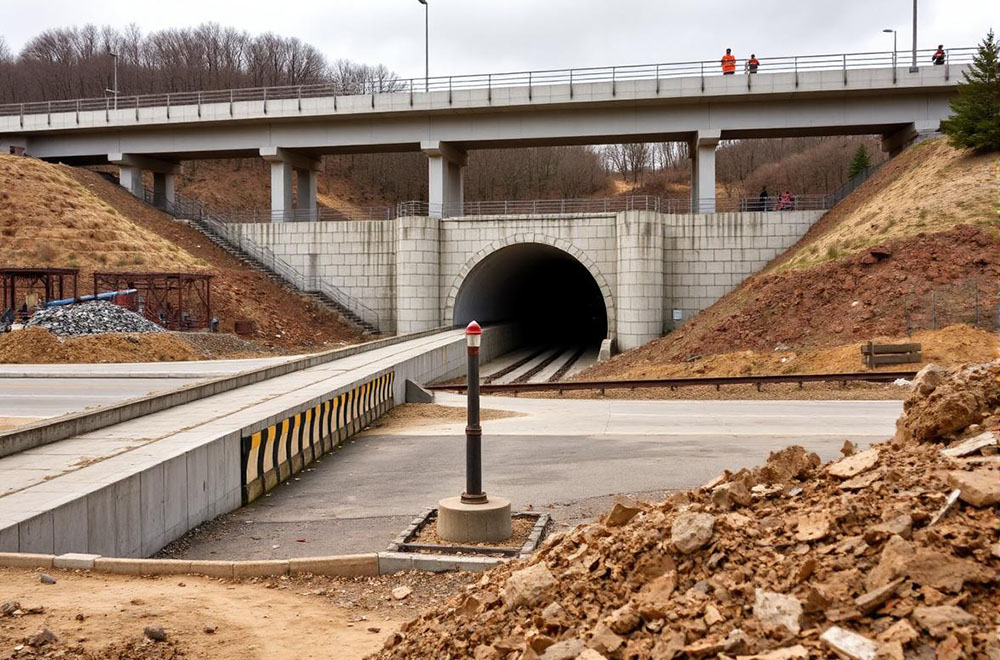

--Infrastructure lifecycle management (bridges, tunnels, highways)
--Construction site material tracking
--Asset identification for municipal and utility companies
