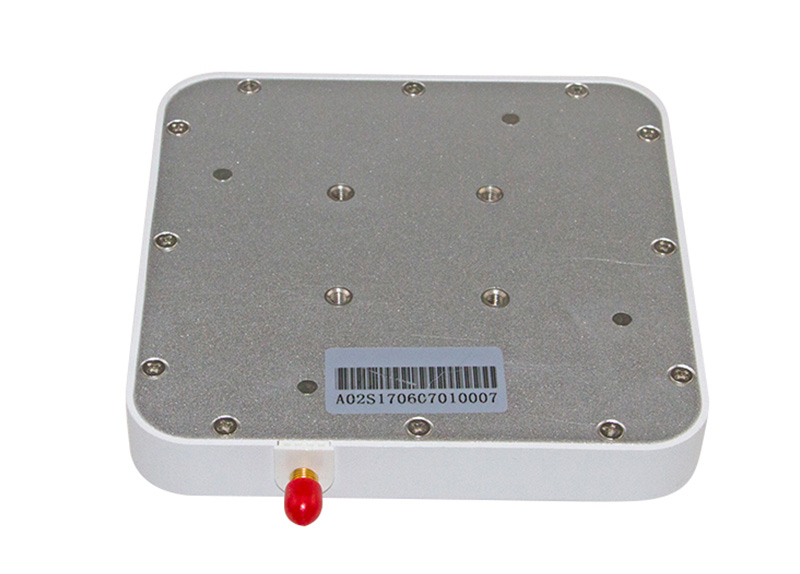

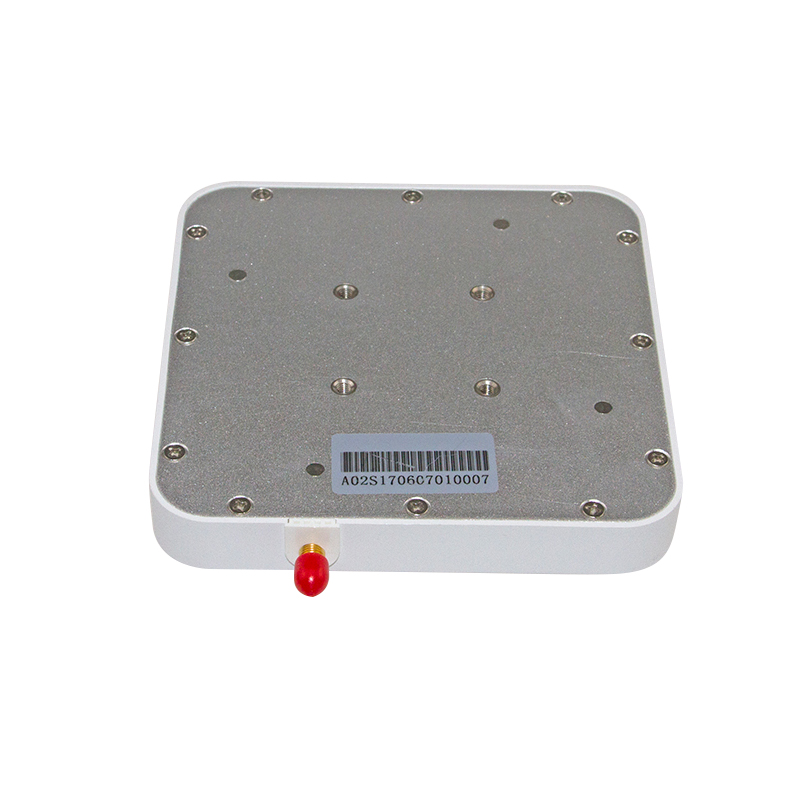

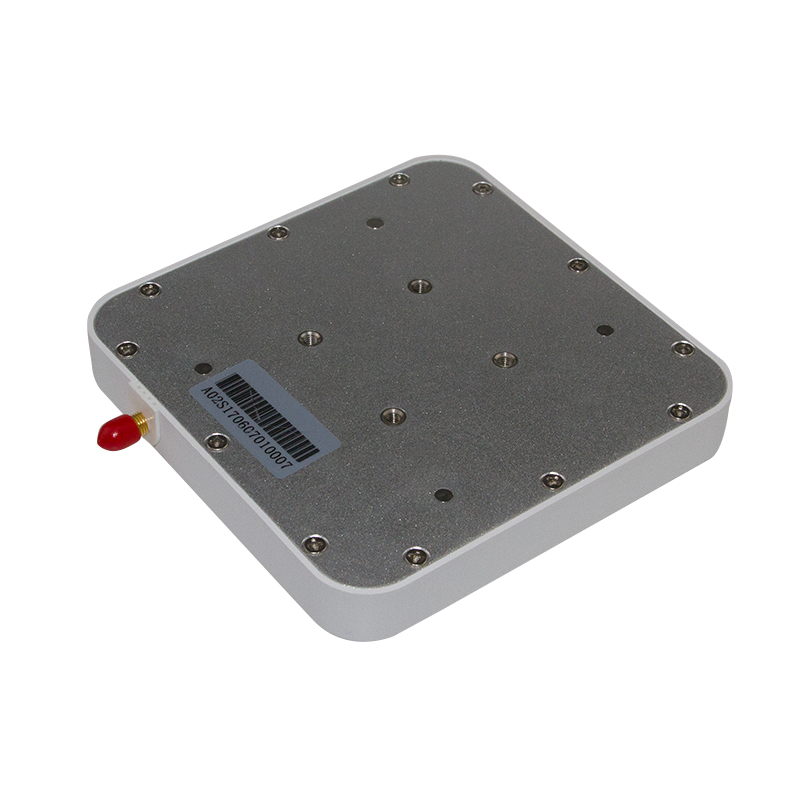

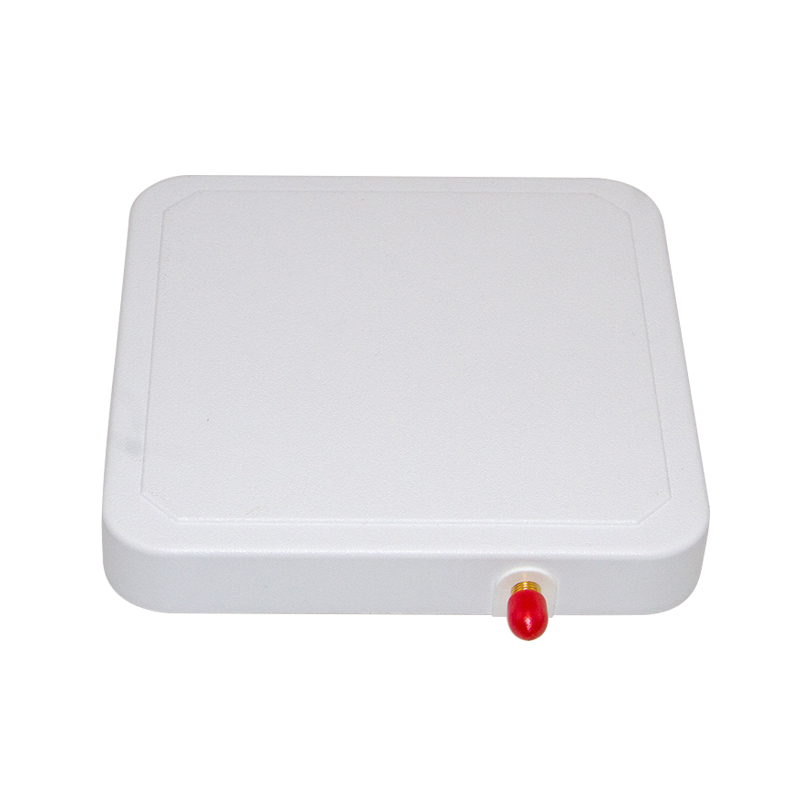

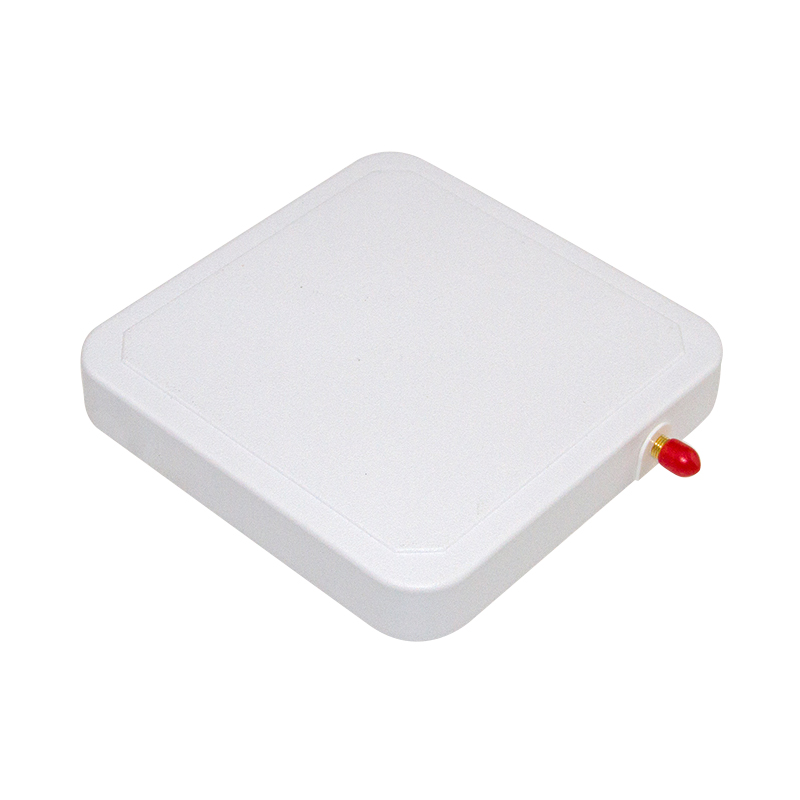

SA-6 860-960MHz UHF Desktop RFID Integrated Reader

High performance UHF RFID reading/writing capability.

Protocol: EPC C1 GEN2 / ISO18000-6C

Equipped with class leading R2000 UHF module

Inquiry

FEATURE

Long-Range Reading: NO physical contact , keep safe distance with the objects
Group Read: Batch data collection and Batch data analysis
Built in hardware door and interface protection circuit, suitable for industrial applications and other complex environment applications.
Multi label card reading speed can reach 1000/10s
Strong scalability, with network interface, RS232, GPlO IN*1, GP10_OUT* 2, RS485, wiegand, CAN, relay and other external interfacesto meet the needs of different user

Frequency	865~868MHz / 920~925MHz / 902~928MHz / Offer Customizetion
Support Protocol	EPC Gen2 (ISO18000-6C)
Support Tag	IMPINJ, NXP, ALIEN ... ...
Model	ZD3232U-NF	ZD3232BT-NF	ZD3221U-NF	ZD3221BT-NF
Size	325 x 325 x 20mm	325 x 325 x 20mm	320 x 210 x 36mm	320 x 210 x 36mm
Net Weighr	1850g	1850g	1200g	1200g
Interface	USB	USB + Bluetooth	USB	USB + Bluetooth
Antenna	Built-in Antenna	Built-in Antenna	Built-in Antenna	Built-in Antenna
Shielding Function	Adequate Support	Adequate Support	Adequate Support	Adequate Support
Power Supply	5V	5V	5V	5V
