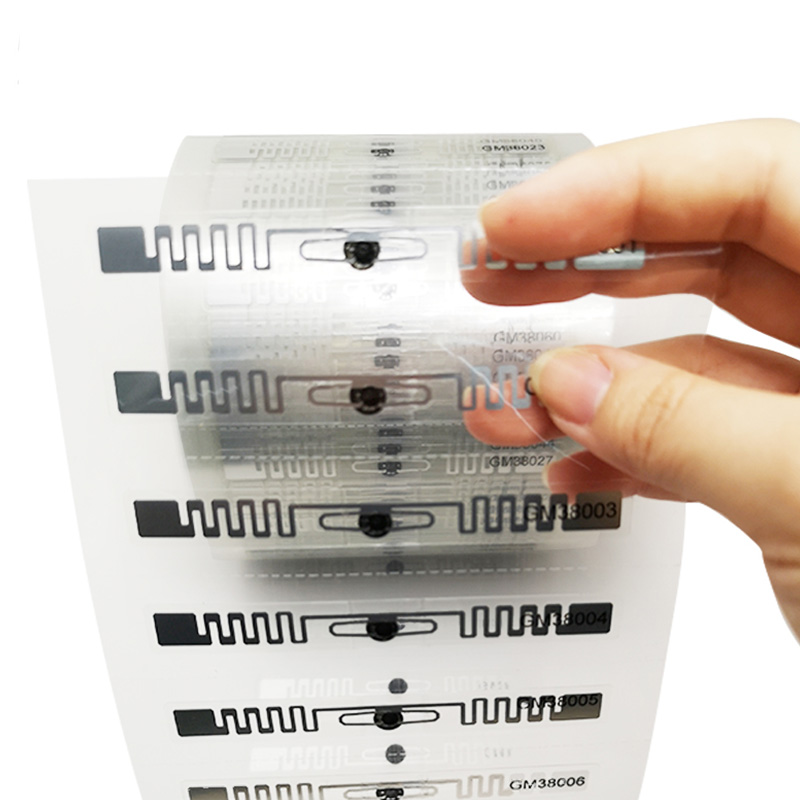

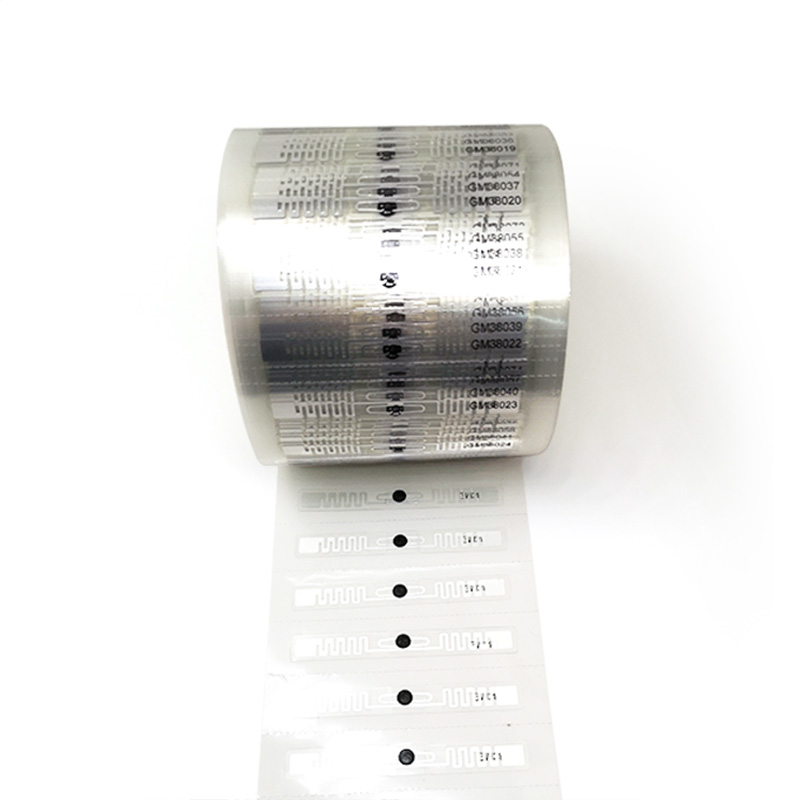

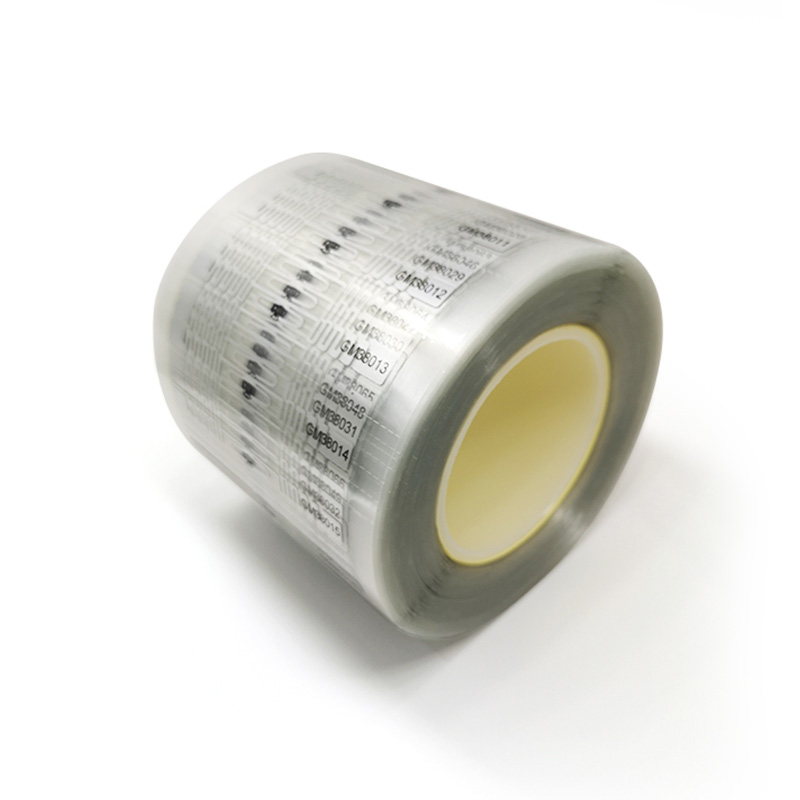

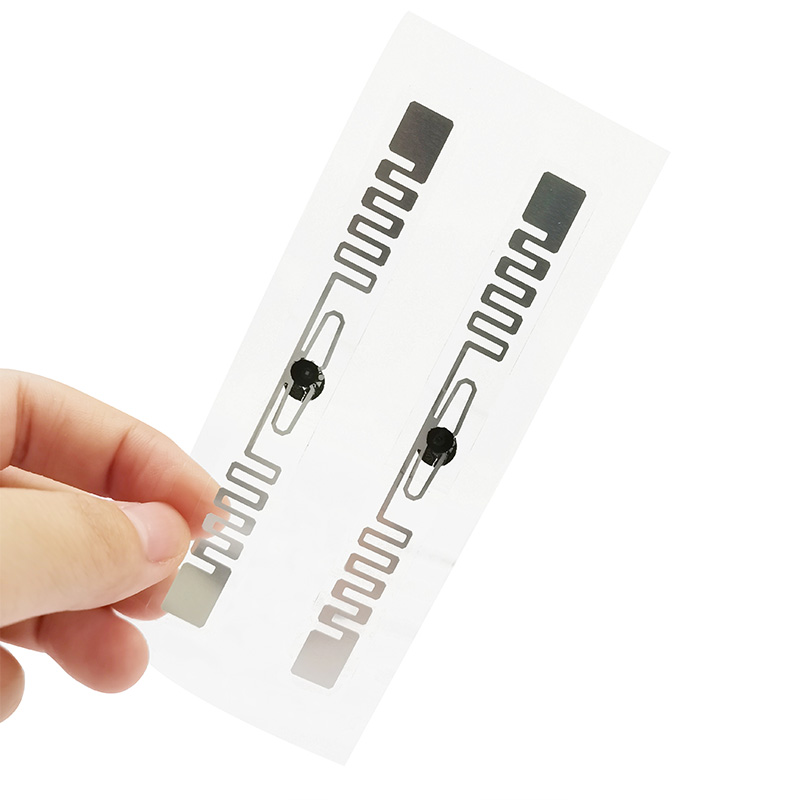

UHF Car Headlamp R6-P Windshield Sticker
ZD9654 car windshield UHF label under EPCglobal Gen2 ISO 18000-6C protocol, antenna is especially designed for windshield with excellent reading performance when the UHF label is adhere on windshield/glass.
- Feature
- Parameter
- Details
- Related Solutions
FEATURE
Excellent UHF reading sensibility
Strong Self-adhesive
UV Resistant to sunlight
Worldwide RFID UHF operation (840-960MHz)
RFID label is widely used for vehicle management, apparel and other industries. Radio frequency identification (RFID), is one of the most promising technological innovations. 9654 UHF antenna is particularly well-suited for windshield and plastic item those materials are high-dielectric. Common application for 9654 UHF label are: Vehicle windshield, Totes and containers, Reusable plastic pallets, etc.
PARAMETER
| PROPERTY | DETAIL |
|---|---|
| Antenna size | 93*19 |
| Label die-cut | 96.5*23.2mm (minimum), support custom size |
| Qty/feel | 5000pcs |
| Core ID | 76mm/ 3inch |
| Antenna | Etched Aluminum |
| Substrate | PET |
| Face Material | coated paper ( Optional: PET, PVC，synthetic paper ) |
| Special | Adhesive side with custom logo printed |
| Unique Print | Double side Logo & UID & QR Print Available |
| Adhesive | Yes, Permanent |
| Frequency | 860-960Mhz |
| IC | Alien Higgas,9 |
| TID | 96bits |
| Memory | 688bits (EPC) |
| Security | 32 Bits access password, 32 Bits kill password |
| Reading range | 3-12 meters |
DETAILS
🎯 Automotive-Grade Design

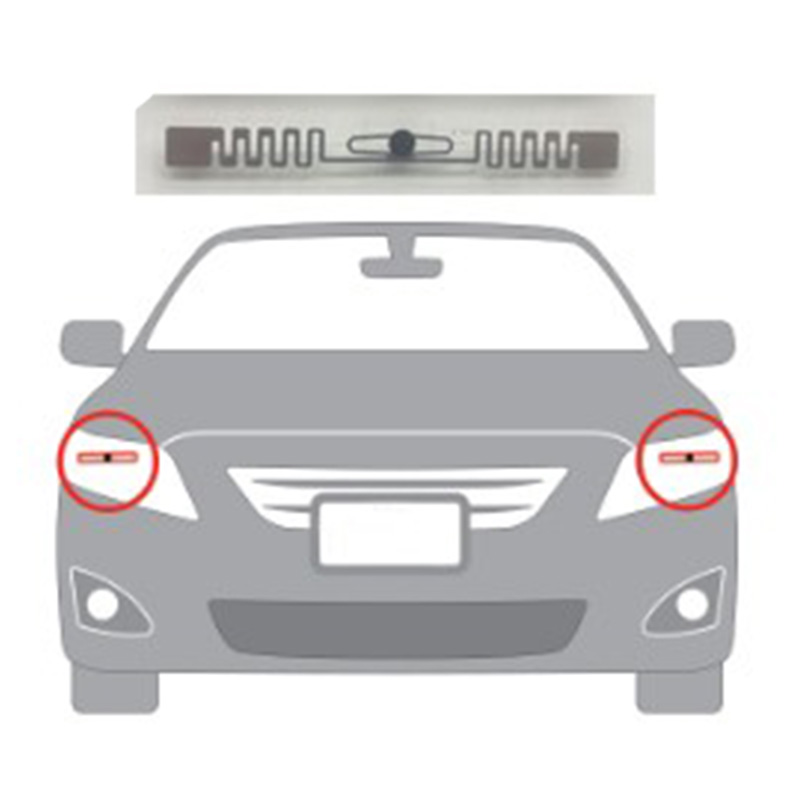

--Specially engineered for windshield application
--Strong adhesive backing, tamper-evident if removed
--Withstands sunlight, temperature changes, and weather conditions
📶 High-Performance UHF Chips
--Alien Higgs-3 / Higgs-4
--Impinj Monza R6, R6-P, M730, M750
--NXP UCODE 8 / UCODE 9
--Read distance: up to 10–15 meters (varies by environment and reader)
🔩 Secure & Customizable
--Printable surface for logos, barcodes, and vehicle ID numbers
--Optional encryption or encoded serial numbers
--Custom sizes, shapes, and transparent versions available
💡 Wide Application Scenarios
--Vehicle identification and access control
--Highway toll collection and e-toll systems
--Fleet and logistics management
--Residential and commercial parking systems
--Car rental, car wash, and drive-through services
