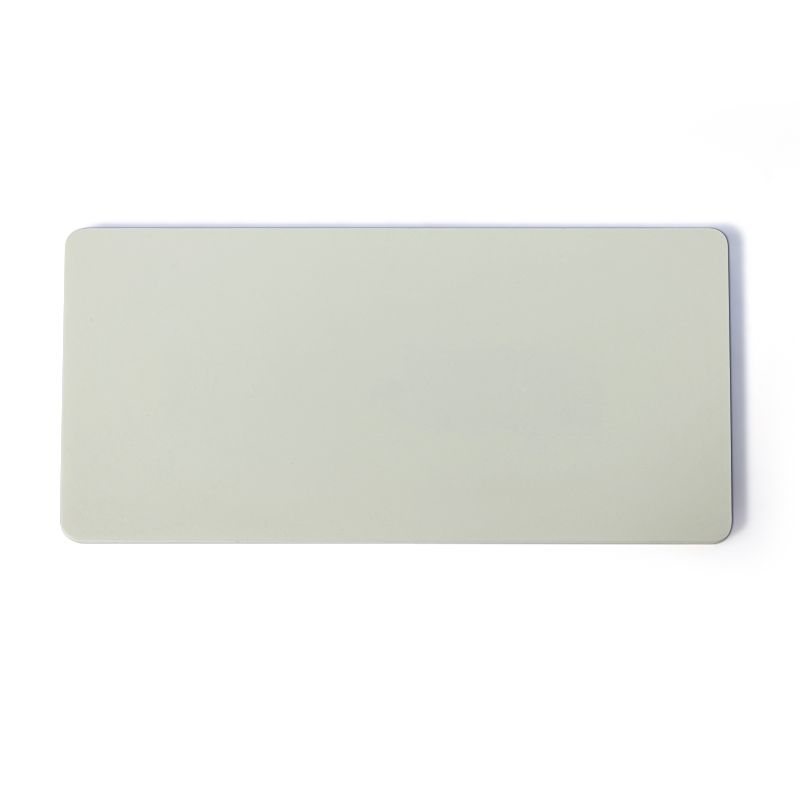

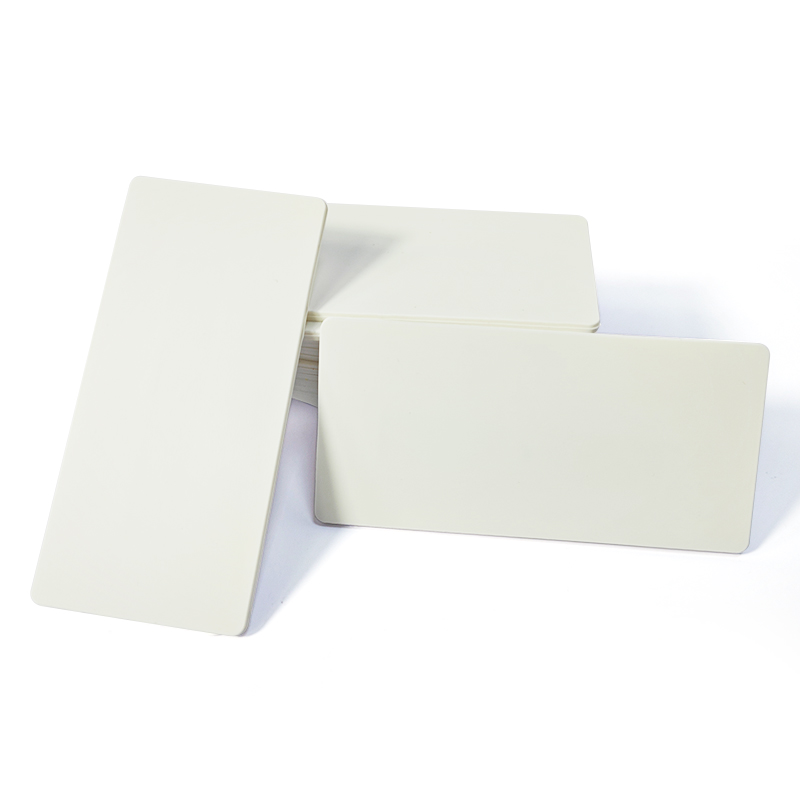

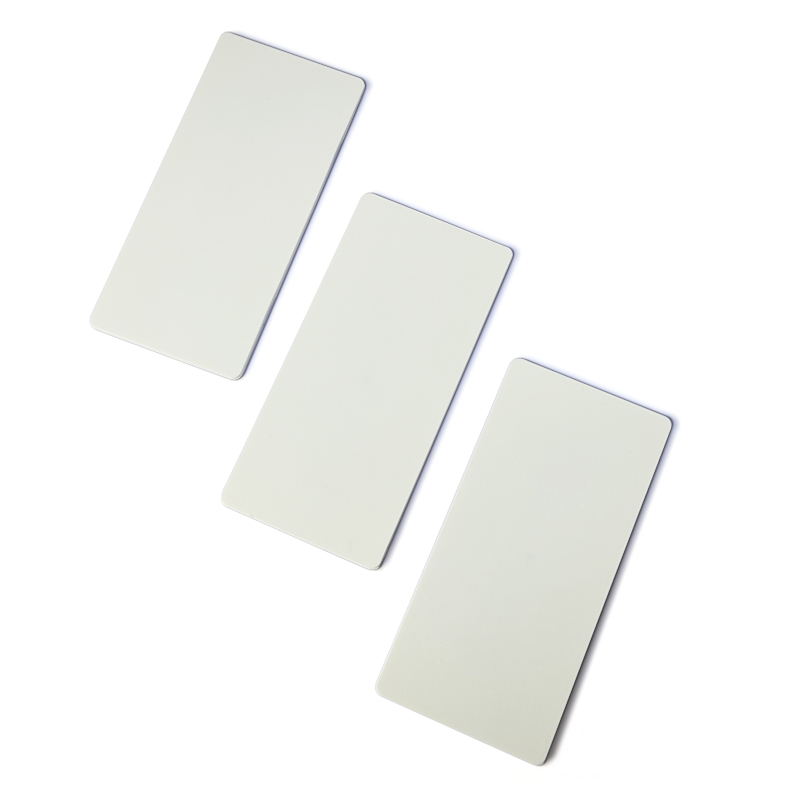

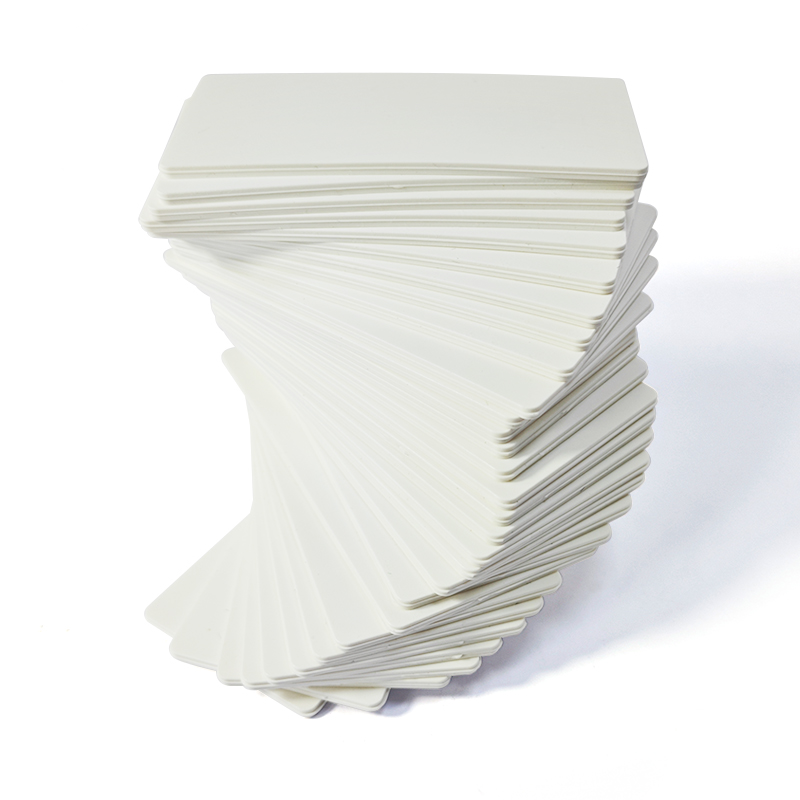

Washable 860~960MHz Silicone UHF RFID Laundry Tag
UHF Silicone Laundry Tag is a flexible tear-resistant label designed for the textile laundry industry. It uses a high-temperature vulcanized silicone one-piece molding process and can withstand industrial-grade washing, dry cleaning, high-temperature sterilization and chemical erosion. It can be directly sewn, hot-pressed or bonded to fabrics such as bed sheets, towels, and surgical gowns to achieve full life cycle tracking , greatly improving linen management efficiency and resource utilization.
Inquiry- Feature
- Parameter
- Details
- Related Solutions

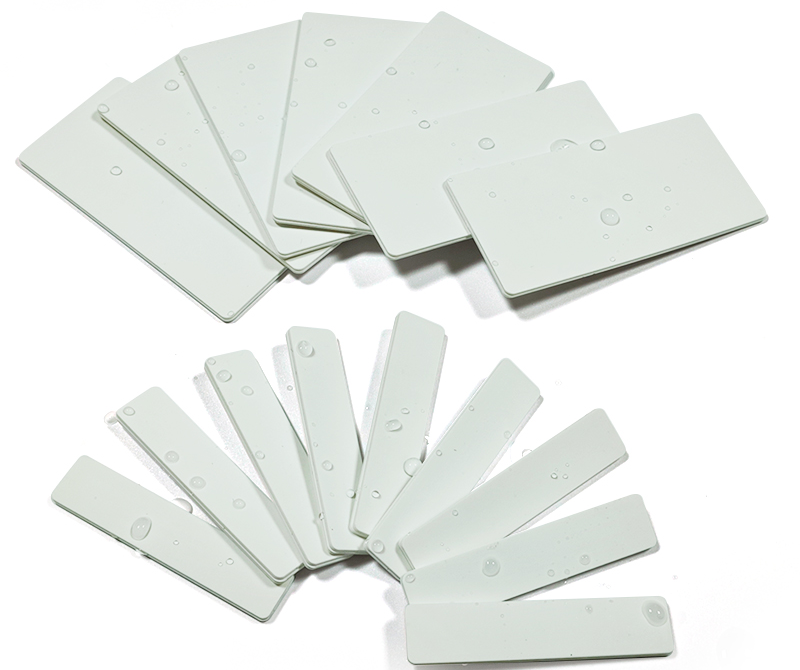

FEATURE
Invisible Fusion: Translucent silicone material, customizable color (matching fabric tones), does not damage the beauty of linens.
Zero maintenance cost: battery-free design, lifetime replacement-free, reducing operating costs.
Environmental compliance: OEKO-TEX® Standard 100 certified, non-toxic and harmless, can directly contact the skin.
Global visibility: The cloud platform monitors the location, status and usage of linens in real time, reducing procurement waste by 30%.
UHF Silicone Washing Label is specially designed for high-frequency washing management of textiles. It adopts flexible silicone packaging, can withstand high-temperature industrial cleaning above 60°C, chemical agents and high-pressure steam sterilization, and has a service life of 200+ washing cycles. It has a built-in UHF (860-960MHz) chip, complies with the EPC Gen2 protocol, supports 5-8 meters long-distance batch reading and fast inventory, has a storage capacity of 96bit-512bit, and can write unique codes, washing records and encrypted data. It is seamlessly integrated into the washing industry RFID system by sewing or hot pressing on the fabric.
PARAMETER
| PROPERTY | DETAIL |
|---|---|
| Material | Silicone |
| Frequency | UHF 860-960MHz |
| Chip | UCODE 8/9, Ailen H3/4 |

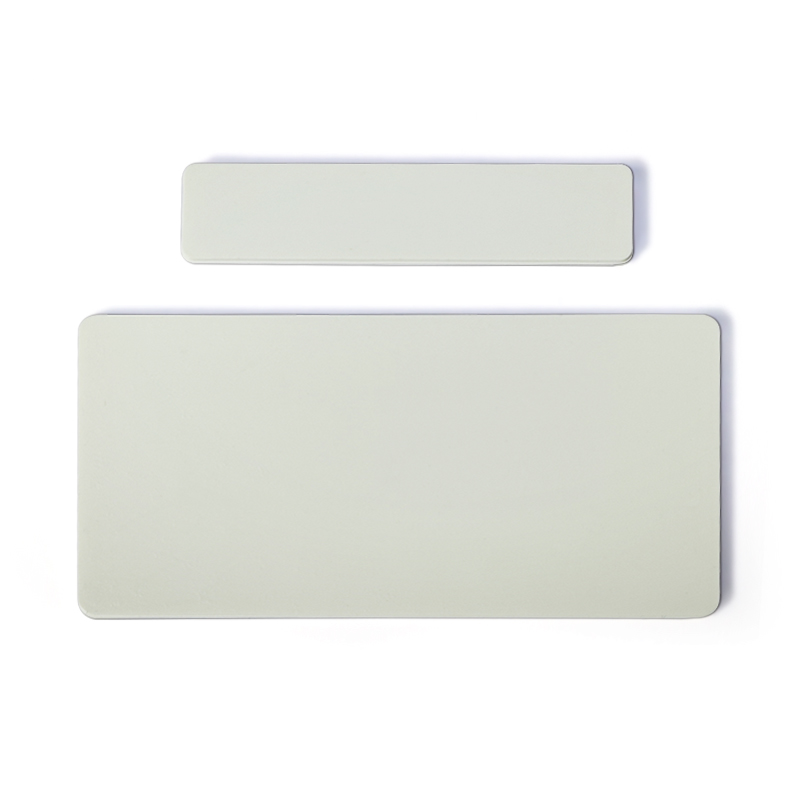

| DIMENSION | 38x20mm±1mm, 56x10mm±1mm, or customized |
| THICKNESS | 2.5mm,or customized |
| Reading Range | 6m (depends on reading environment and reader) |
| Group Read | 1000pcs |
| Crafts | Silkscreen,offset,full color,UV,laser,UID |
| Warranty | New Encapsulation: 250 cycles or 3years |
DETAILS
🎯 Durable & Washable Design
--Encased in high-quality silicone for water, detergent, and heat resistance
--Withstands repeated washing, drying, ironing, and chemical exposure
--Soft, flexible, and non-damaging to fabrics
📶 High-Performance UHF RFID
--Frequency: 860–960 MHz, EPC Class 1 Gen2

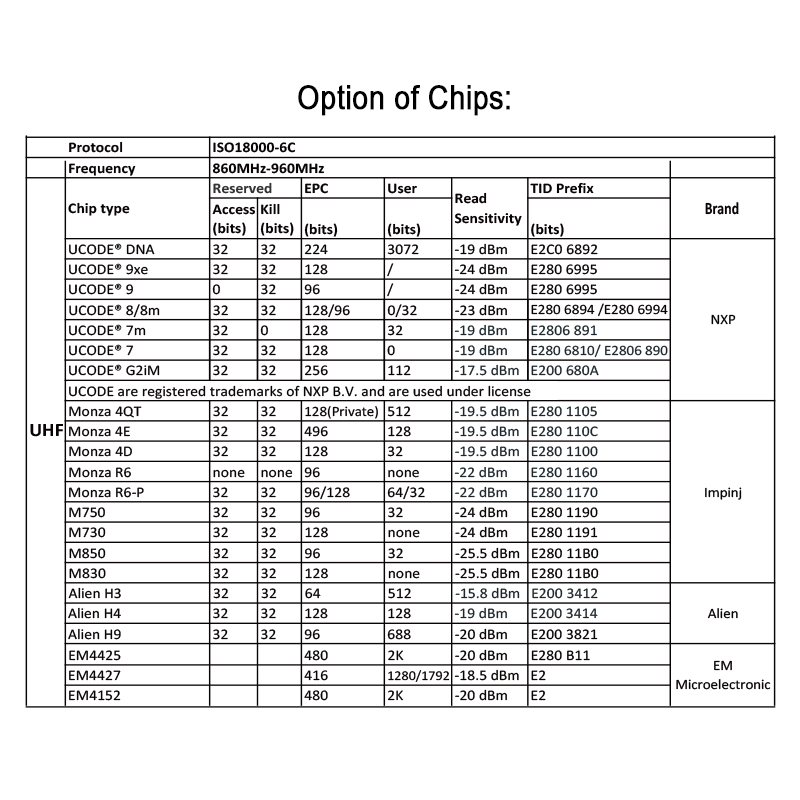

--Chip options: Impinj Monza R6 / R6-P, Alien Higgs-4, NXP UCODE 8
--Read range: 3–8 meters depending on environment and reader
🔩 Easy Integration & Customization
--Can be attached with cable ties, sewn loops, or adhesive backing
--Customizable size, color, logo, and serial number
--Optional laser engraving or QR code for secondary identification
💡 Wide Application Scenarios

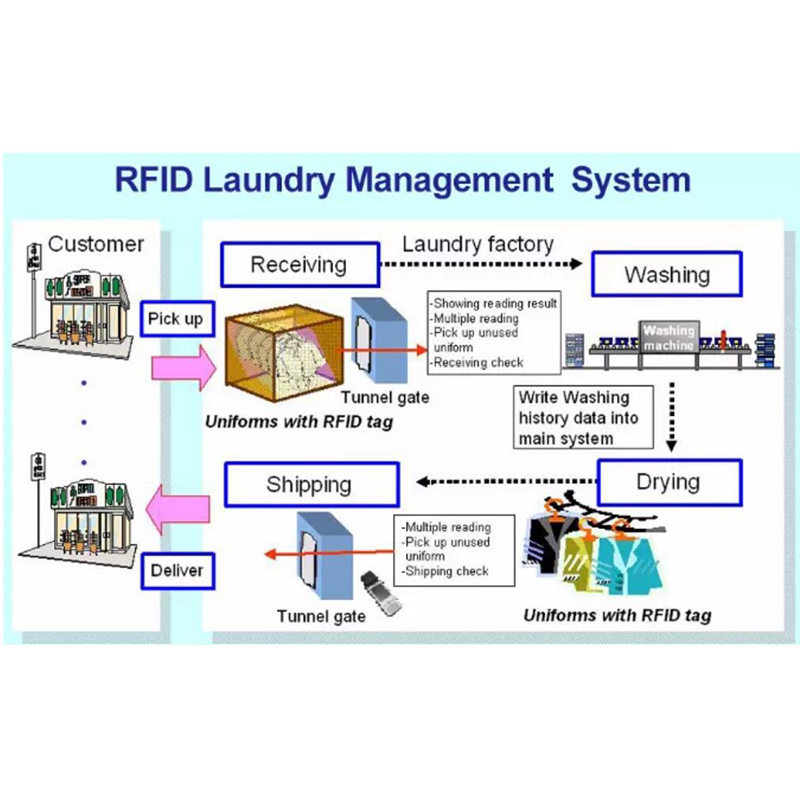

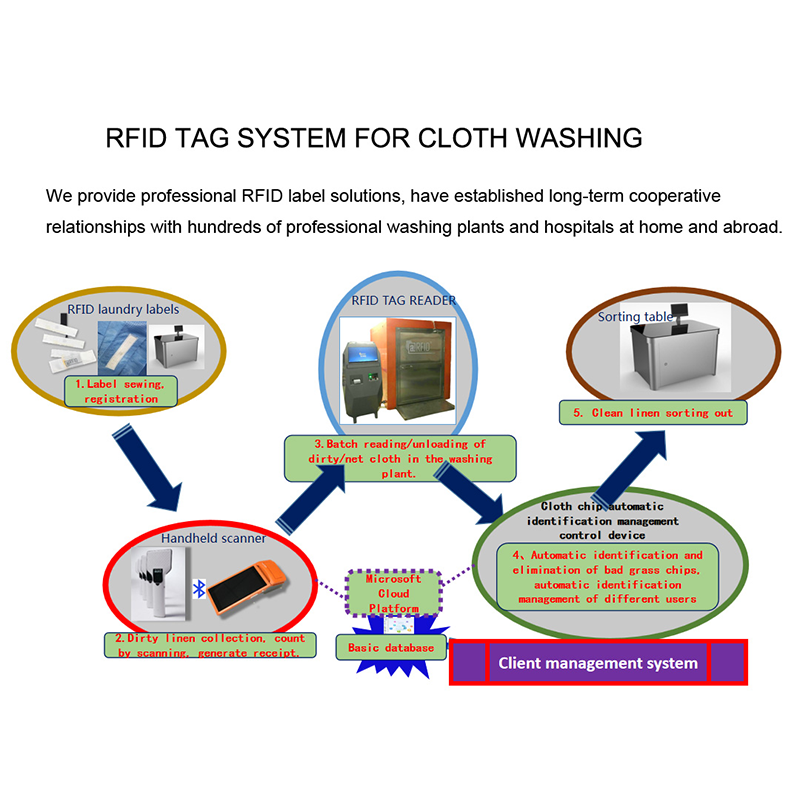

--Textile and garment laundry tracking (hotels, hospitals, factories)

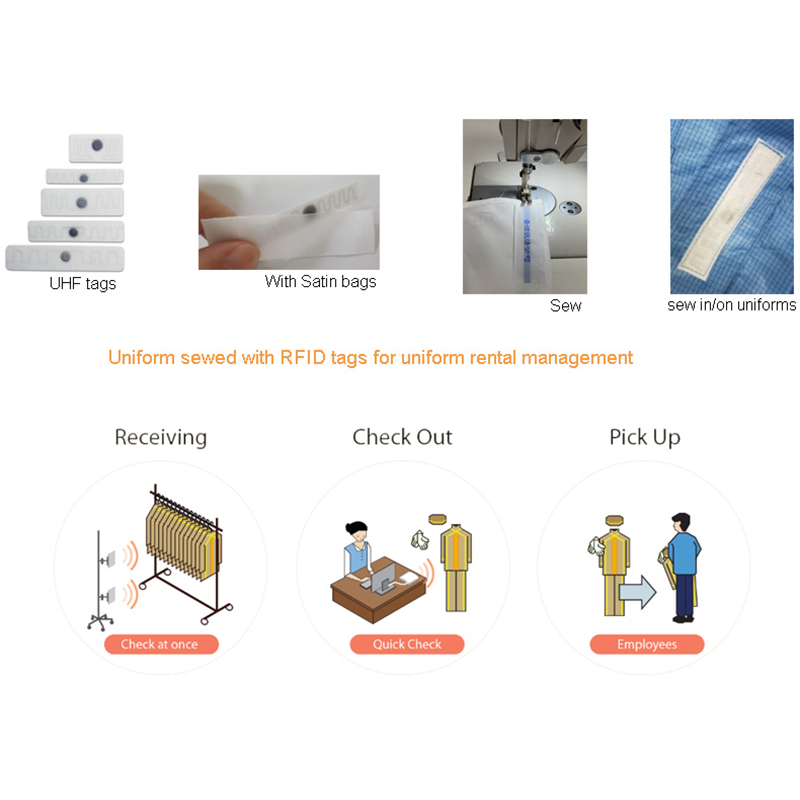

--Uniform management and rental services
--Smart inventory management in supply chain & logistics
--Asset tracking for washable textile products
