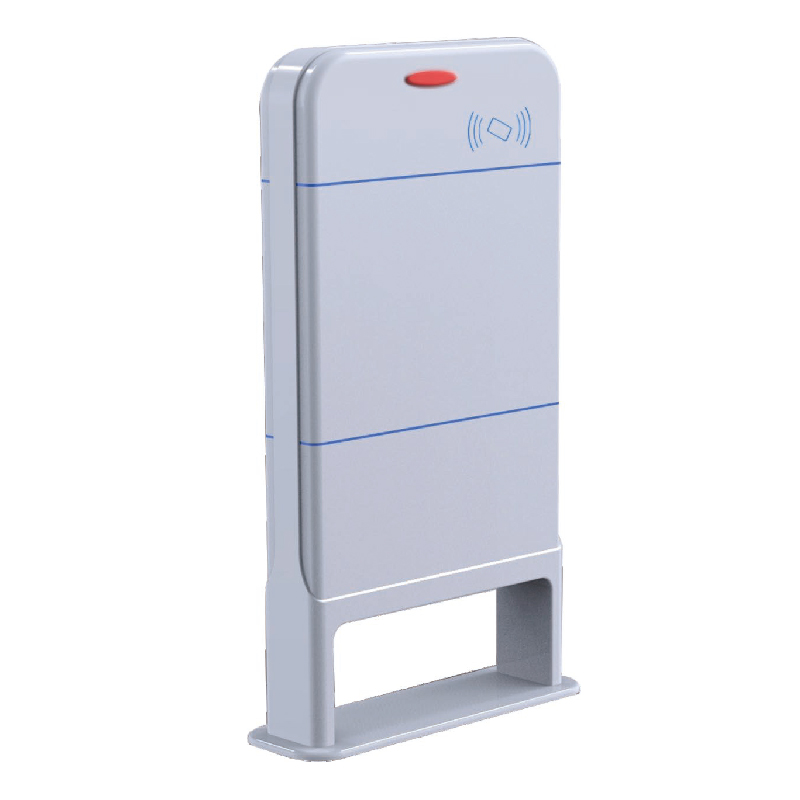

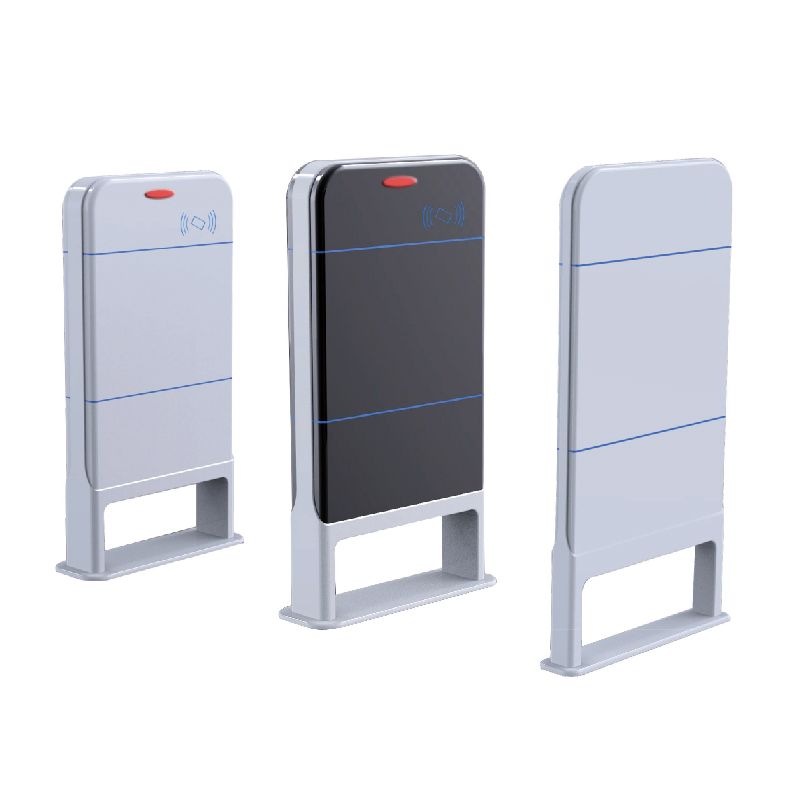

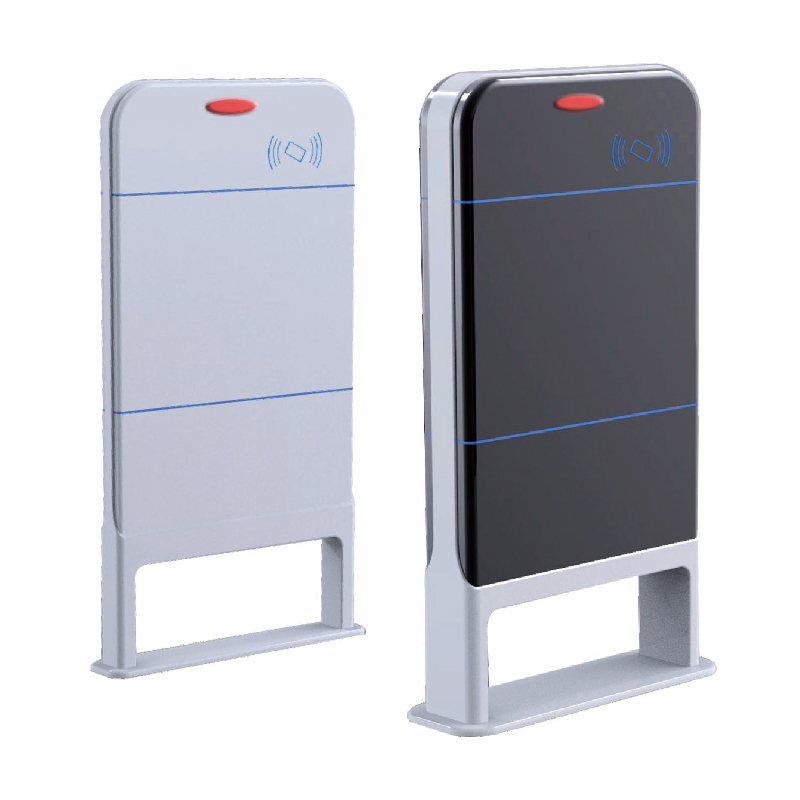

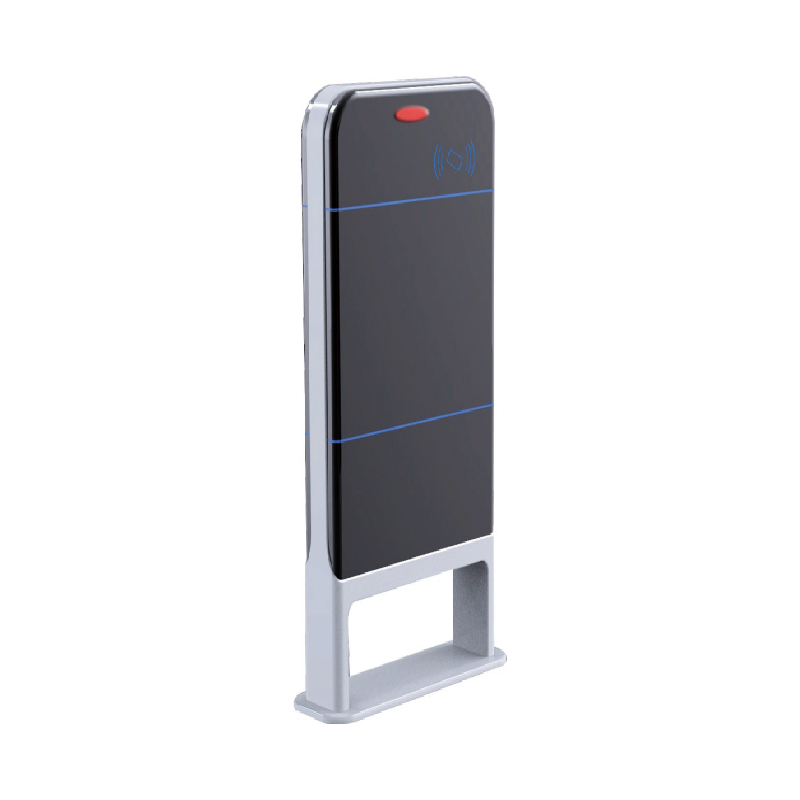

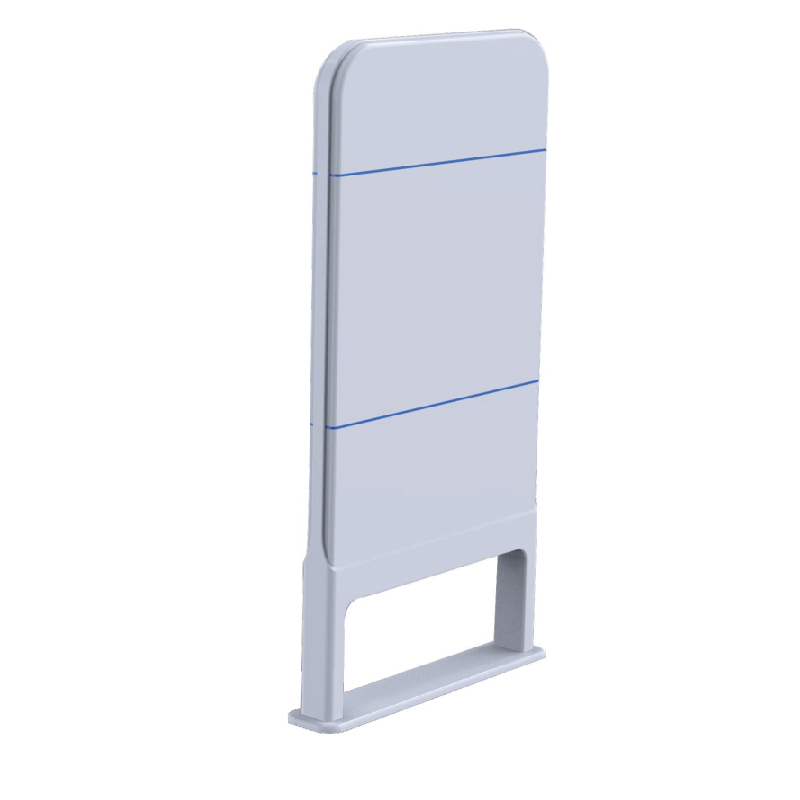

ZR-02 HF 3D Gateways
The HF 3D Channel Gate is an intelligent access control system that combines high-frequency RFID recognition with 3D body sensing technology. It offers fast and accurate identification of personnel carrying RFID cards or tags and supports multiple authentication methods such as IC cards, national ID cards, and QR codes. With anti-tailgating, intrusion detection, and real-time status indication, it is designed for safe, efficient access management in high-traffic environments.
Inquiry- Feature
- Parameter
FEATURE
High-Frequency RFID Identification: Built-in 13.56MHz HF reader, compliant with ISO 14443A/B and ISO 15693 protocols. Read range up to 60cm with a response time of <0.1s.
3D Body Sensing Technology: Integrated with advanced infrared or ToF sensors, enabling real-time human detection, single/multiple person distinction, and tailgating prevention.
Multi-Mode Authentication: Supports IC card, optional facial recognition, national ID card reading, and QR code scanning.
Smart Voice & LED Indication: Voice prompts and LED light bars provide real-time user guidance and status display.
Anti-Clamping & Anti-Intrusion: Dual-motor mechanism with both mechanical and infrared anti-pinch functions; auto-return anti-collision gate wings.
System Integration: Supports TCP/IP communication, RS485, Wiegand 26/34. SDK and API available for third-party system integration.
PARAMETER
| Specification | Details |
|---|---|
| Passage Width | 600–900mm (customizable) |
| Power Supply | AC220V ±10%, 50Hz |
| Communication Interface | RS485, Wiegand 26/34, TCP/IP |
| Operating Temperature | -20°C to +60°C |
| Humidity Range | 10% – 90% RH (non-condensing) |
| Throughput | ≥35 persons/min (card-based access) |
| Recognition Technology | 13.56MHz RFID + 3D infrared body detection |
| Material Structure | 304 stainless steel + tempered glass/acrylic panels |
| Indication System | LED light strip + intelligent voice prompts |
| MTBF (Mean Time Between Failures) | ≥5,000,000 passages |
| Opening Time | 0.2–0.6 seconds (adjustable) |
| Safety Features | Anti-pinch, anti-tailgating, unauthorized access alarm |
