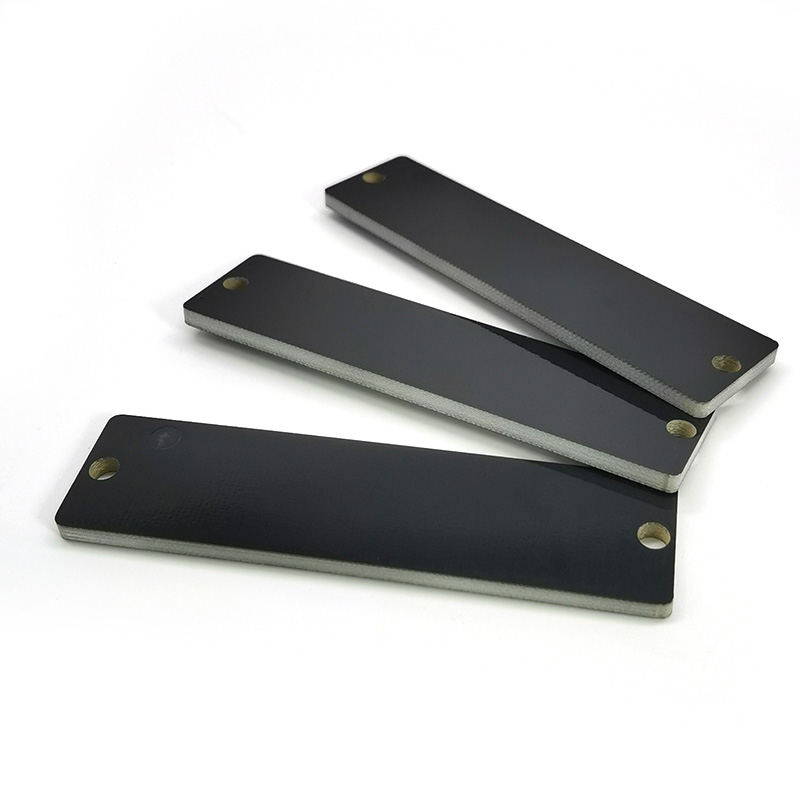

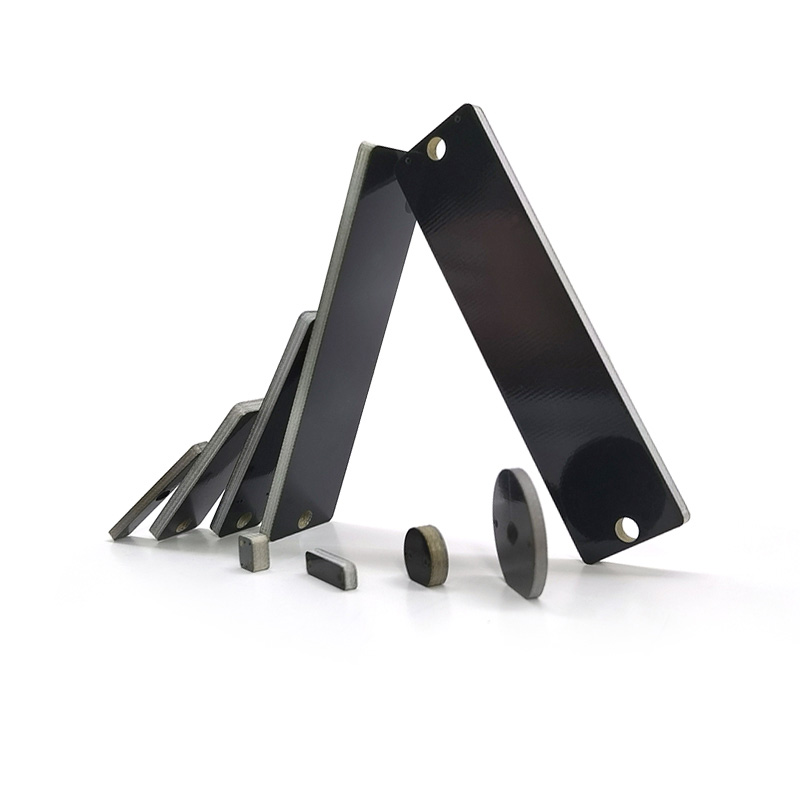

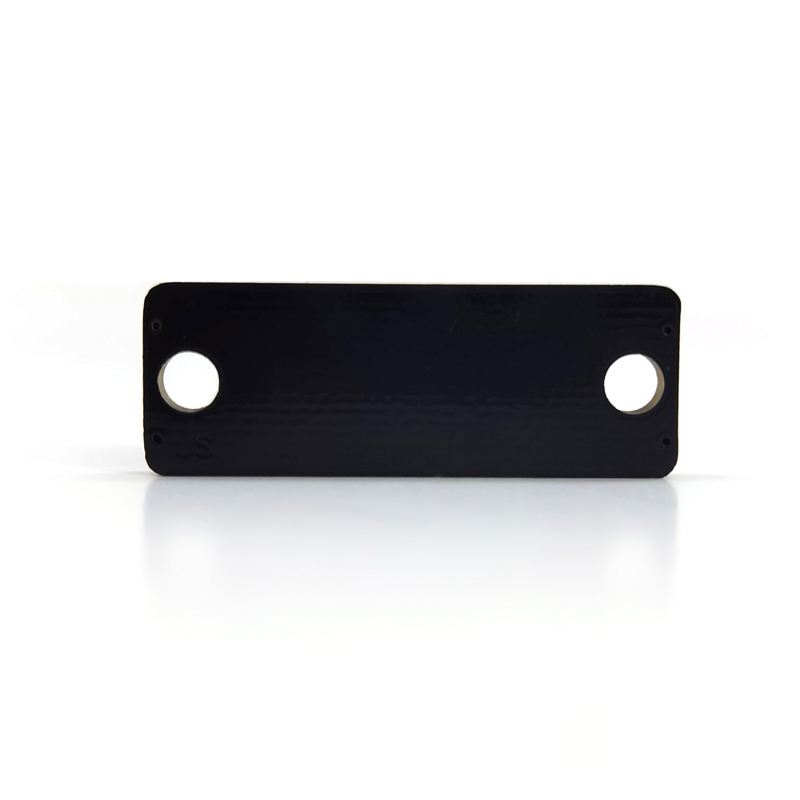

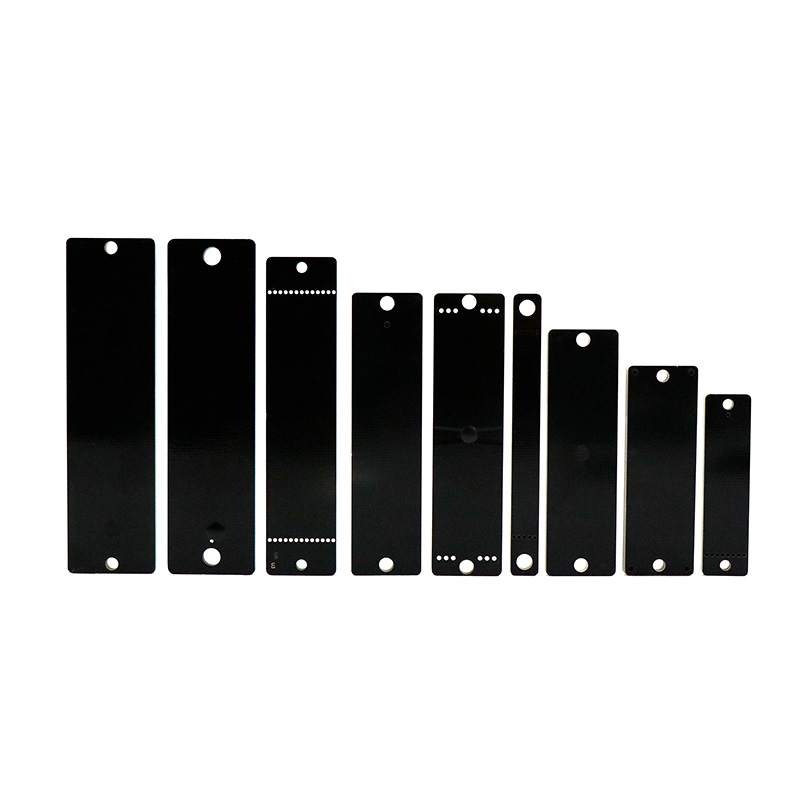

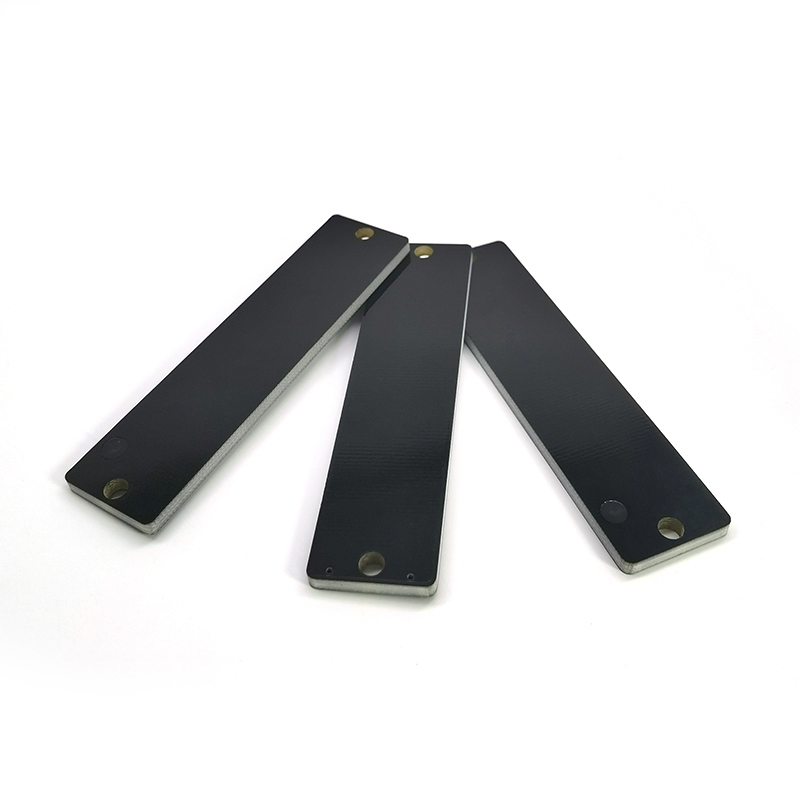

Anti-metal High temperature UHF PCB tag
PCB anti-metal tag adopts FR4 substrate + metal isolation layer design, offsets metal interference through electromagnetic isolation technology, supports UHF frequency band, and has a reading distance of 2-15 meters (adapted to metal surface). It has built-in anti-metal antenna and high-temperature resistant epoxy resin package, can withstand -40°C to +85°C and humid and oily environment.
Inquiry- Feature
- Parameter
- Details
- Related Solutions
FEATURE
Anti-metal
Waterproof
Different size for application
Advantages: Enhanced Readability: Improved performance on metal surfaces compared to standard RFID.
Durability: Designed to withstand harsh environments, including exposure to chemicals, extreme temperatures, and mechanical stress.
Versatility: Suitable for a wide range of applications where metal interference would normally be problematic.
Long Read Range: UHF tags offer longer read ranges compared to lower frequency RFID tags, which is beneficial for tracking over larger areas.
PARAMETER
| PROPERTY | DETAIL |
|---|---|
| Frequency | 860-960MHz |
| Material | PCB |
| Protocol | EPC Class1 Gen2 / ISO 18000-6C |

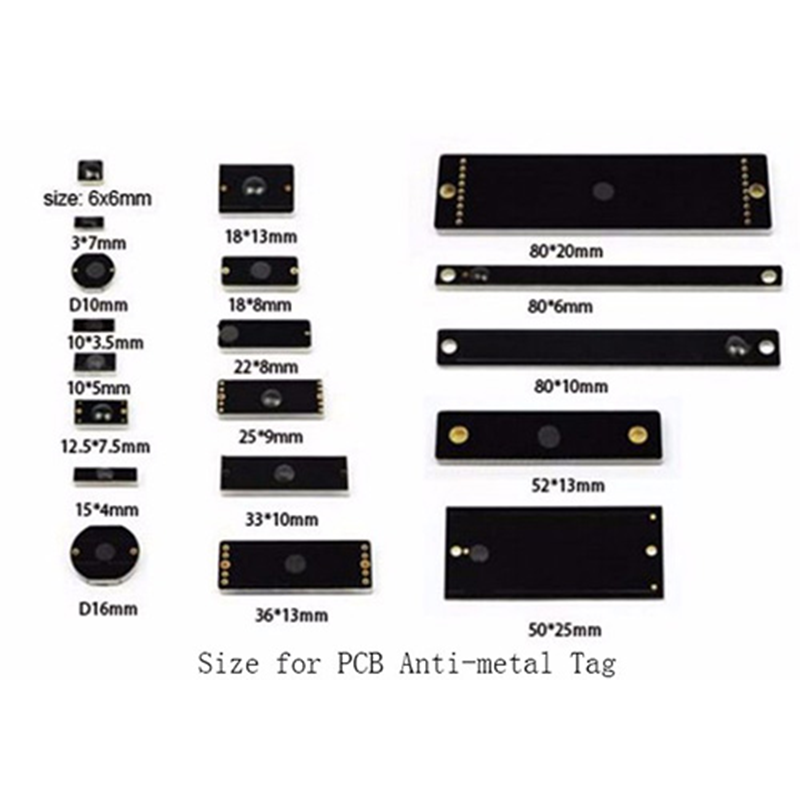

| Size | Dia 6/10mm, 10*5mm / 6*6mm, 10x4mm, 95x25mm etc. |
| Reading distance | 0-10m |
| Write circle | 100,000 times |
| Application | Assets management |
| Install way | Sticker, screw closed, fix with zip tie etc. |
DETAILS
🎯 Anti-Metal Design
--Specially engineered with a ferrite/anti-metal layer
--Ensures reliable RFID performance on metallic objects
--Suitable for equipment, IT assets, tools, and industrial machinery
📶 Flexible RFID Options
--Frequency: LF / HF / UHF (EPC Class 1 Gen2, ISO18000-6C, ISO14443A, ISO15693)

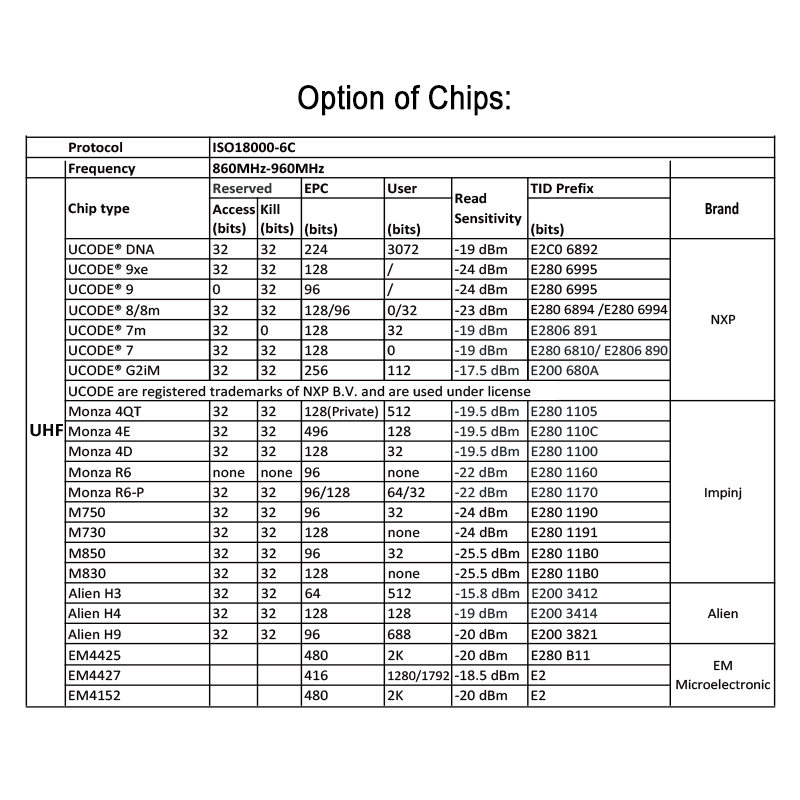

--Chip options include EM4200, NTAG213, ICODE SLIX, MIFARE Classic, Alien Higgs-4, Impinj Monza R6, NXP UCODE 8
--Read range: 2–10 meters (depending on chip, environment, and reader)
🔩 Durable & Customizable
--Materials: ABS, PET, PPS, or PCB with epoxy or hard casing
--Mounting options: adhesive, screws, rivets, or cable ties

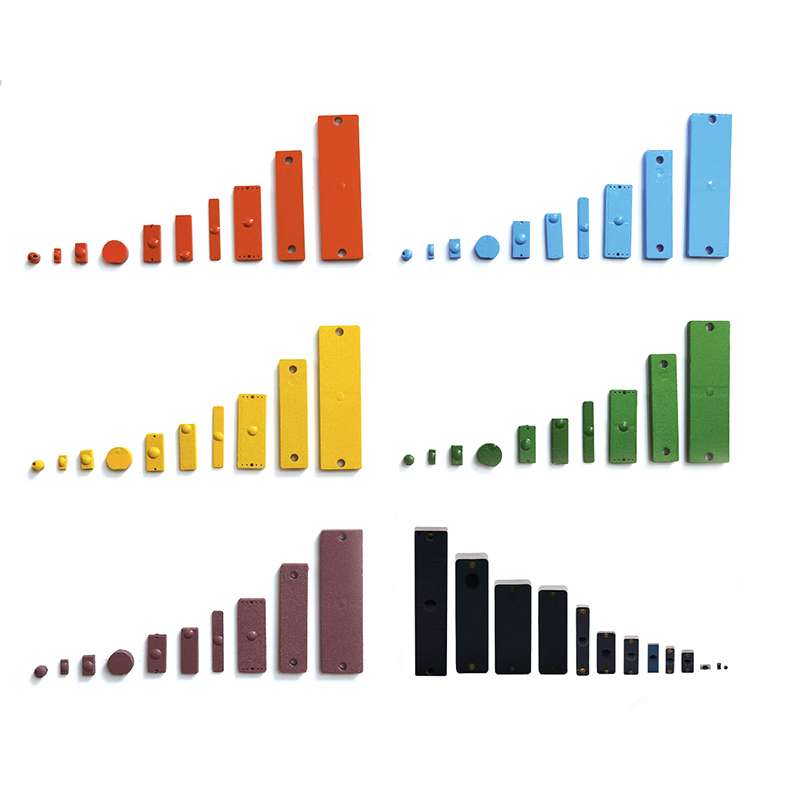

--Customizable size, shape, color, logo, serial numbers, or QR code
💡 Wide Application Scenarios
--IT asset management (servers, laptops, networking equipment)
--Tool & equipment tracking in factories or warehouses
--Logistics & supply chain management for metal containers and pallets
--Industrial automation and maintenance tracking
--Healthcare & laboratory equipment management
